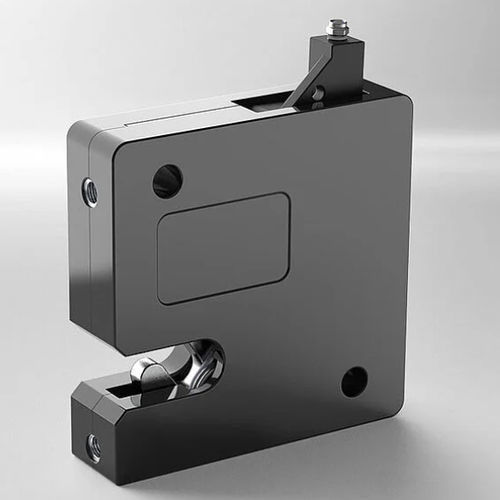

Solenoid lock Solenoid Door Lock

for doorcompactsafety

Overview
Kendrion Solenoid Door Locks are robust and compact electromagnetic locking solutions for industrial applications requiring reliable performance, high holding force and long operational lifetime. The lock is equipped with integrated sensors to detect the locking position and includes an emergency opening function. Depending on the application requirements, it is available in monostable or bistable versions.

Benefits

• Lightweight design
• Compact dimensions
• Low energy consumption due to powerless locking position
• High durability
• Fast switching
• Battery operation possible
• Simple control electronics
• Snap-in function possible
• High holding force in a compact design

Applications

• Door locking technology
• Access control
• Aviation
• Medical technology
• Analysis and laboratory technology
• Industrial devices and systems
• Combi-steamers, steam cookers and ovens
• Autoclaves
• Washing machines
• Disinfection and sterilisation devices
• Cabinets, centrifuges and incubators
• Vending machines

Key Technical Data

• Versions: self-locking (SL) and active-locking (AL)
• Type of solenoid: monostable (SL) or bistable (AL)
• Operating voltage: 24 V DC
• Dimensions: 70 x 70 x 18 mm
• Maximum static holding force: 1,600 N
• Maximum load force for electrical unlocking: 400 N
• Operating temperature: 0 to 80 °C
• Housing: plastics
• Emergency opener: available
• Snap-in function: available on request for AL
