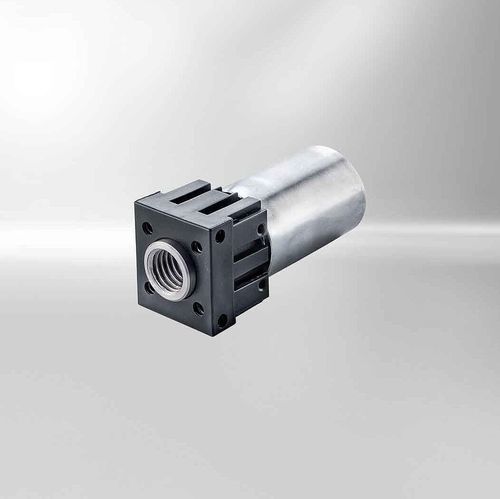

The Kendrion bistable locking solenoid LLB is a compact, energy-efficient locking unit designed for safe and smart locking applications, with options for battery operation, position monitoring (Hall sensor) and manual emergency unlocking.

Key highlights

• Battery operation possible — suitable for mobile applications such as locking toolboxes or hospital side tables
• Energy-saving operating principle: only a short current pulse required for locking; permanent magnetic hold when de-energised
• Optional Hall sensor for end-position detection (minus switching, 5–30 V, max. 30 mA)
• Optional manual emergency unlocking

Benefits

• Very low energy consumption (suitable for battery use)
• Compact, cost-efficient design for space-constrained installations
• Simple integration with position monitoring and emergency release options

Characteristics / Technical specifications

• Supply voltage: 24 V DC; optional: lithium battery 6 AM6 (9 V / 1200 mA)
• Duty cycle: 25 %
• Stroke: 7 mm
• Permanent magnetic force: 30 N
• Radial force: 1,000 N (front-side installation); 500 N (lateral installation)
• Protection class (connector / solenoid): IP30 / IP00
• Position detection (optional): Hall sensor (minus switching, 5–30 V, max. 30 mA)
• Installation: threaded holes at front and bottom side
• Locking pin diameter: 15 mm
• Battery life / switching: with battery operation at least 50,000 switching operations (energy-saving design)
