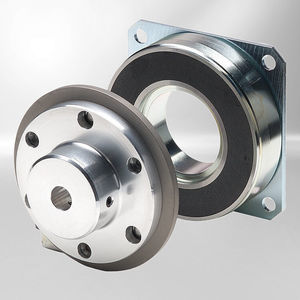

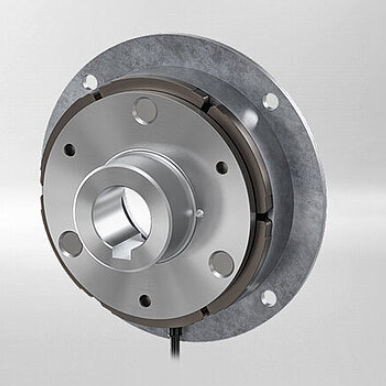

Friction clutch and brake INTORQ 14.115

electromagneticmodularlow-inertia

Overview
The INTORQ 14.115 is an electromagnetically engaged clutch/brake designed for fast engagement and disengagement in dry-running applications. It forms part of a modular family covering a wide torque range and is built for low inertia, short switching times and long service life. The unit can be mounted in any installation position and requires minimal maintenance while ensuring residual-torque-free ventilation for safe operation.

Features at a glance

• 7 sizes
• Friction-locking torque transmission in dry running
• Torsion-/angle-backlash-free torque transmission
• High switching frequencies
• Adaptable to different stator and armature constructions

Technical details
Torque range: 7.5 Nm – 480 Nm
Rated DC voltage: 24 V
Type: electromagnetically engaged (friction-locking)
Insulation class: B (130°C)

Characteristics / specifications

• Electromagnetic engagement principle, dry-running
• Low inertia torque and short operating times
• Residual-torque-free ventilation
• Nearly maintenance-free over service life
• Customisable by combining different stator and armature types
