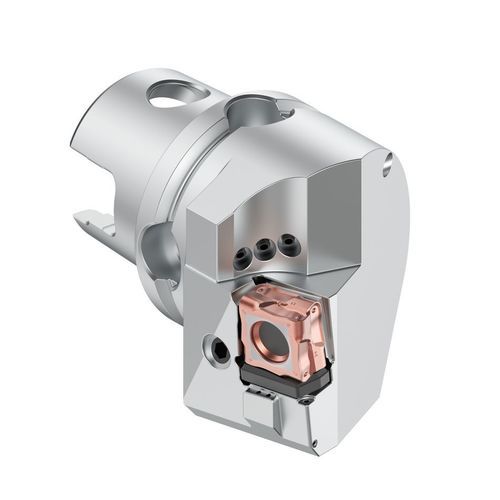

Tool holder for turning applications KM50 series

quick-changewith coolantmodular

Overview
FIX8™ Toolholder KM50 designed for heavy-duty turning operations. Quick-change adaptor compatible with KM modular quick-change systems. Configured for PCBN inserts with a 75° geometry and precision through-coolant delivered to the cutting edge for improved thermal control.

Key designation
Heavy-duty turning • Quick-change adaptor

Features and benefits

• Eight cutting edges per insert to extend tool life per index
• Precision 3D coolant directed to the cutting edge for heat control and chip evacuation
• Low cutting forces and engineered chip control for stable heavy cuts
• Heavy-duty chip geometry enabling high feed rates
• High cutting-edge strength with a rigid clamping system for repeatable accuracy

Product details

• Material Number: 106359550
• Product family: FIX8™
• Model / Adaptor designation: KM50
• Insert type: PCBN
• Insert geometry: 75°
• Coolant: Through-coolant delivered to cutting edge (precision 3D coolant)
• Application: Heavy-duty turning, high-feed rates, improved chip control
• Representation: Generic representation (product imagery may be representative)

Technical specifications

• Brand: Kennametal
• Product family: FIX8™
• Model: KM50
• Material / Article number: 106359550
• Toolholder type: Quick-change adaptor for turning
• Insert material: PCBN
• Insert edges: Eight cutting edges per insert
• Geometry angle: 75°
• Coolant feed: Through-coolant, precision 3D coolant to cutting edge
• Typical use: Heavy-duty turning with rigid clamping for high feeds and excellent chip control
