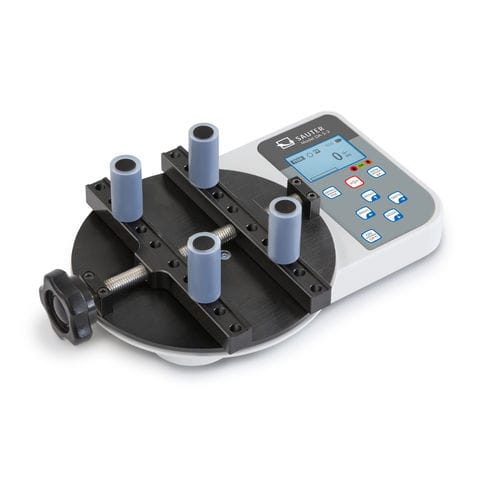

Portable force gauge and torque meter DA 1-4

for bottle closureselectronic

Optimised for torque testing of bottles, jars and other packaging with screw tops with a minimum diameter of 15 mm and a maximum diameter of 160 mm, in the food industry and pharmaceutical industry, as well as in the manufacturing of cosmetics such as, for example, lipsticks, etc. Quick pin system: The four bottle mounts (holders) are pushed in, instead of being screwed in, to save time. This allows you to reconfigure quickly for other bottle sizes Metal housing for durable use in harsh environmental conditions Capacity display: A bar lights up to show how much of the measuring range is still available LCD graphics display with backlight Rubber feet with anti-slip feature Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software Data interface USB and RS-232 included Peak-Hold function to capture the peak value or Track function for continuous display of measurement Can be used in both directions of rotation Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal AUTO-OFF function Scope of delivery: four bottle holders with rubber coating, sturdy carrying case
