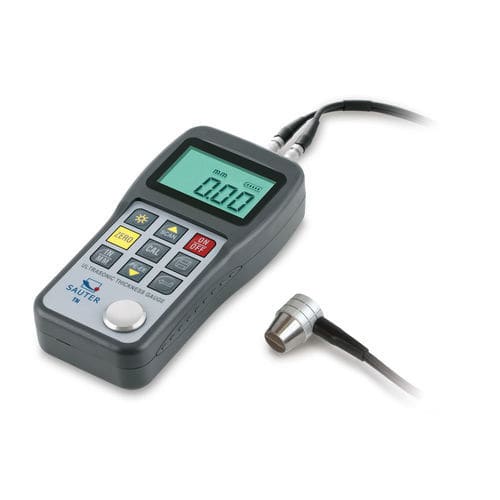

Portable thickness gauge TN 80-0.01USmaterialultrasonic
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- portable
- Applications
- material
- Technology
- ultrasonic
- Measuring range
Max.: 80 mm
(3.15 in)Min.: 0.75 mm
(0.03 in)- Measurement accuracy
0.01 mm
(0 in)- Measuring rate
Max.: 7 MHz
- Weight
0.3 kg
(0.7 lb)- Ambient temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)
Description
External measuring head
Data interface USB standard
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100} values per file)
Selectable measuring units: mm, inch
Scope of delivery: Operating instructions, batteries, external measuring head (∅ 6 mm) and ultrasound contact gel
Delivered in a robust carrying case
