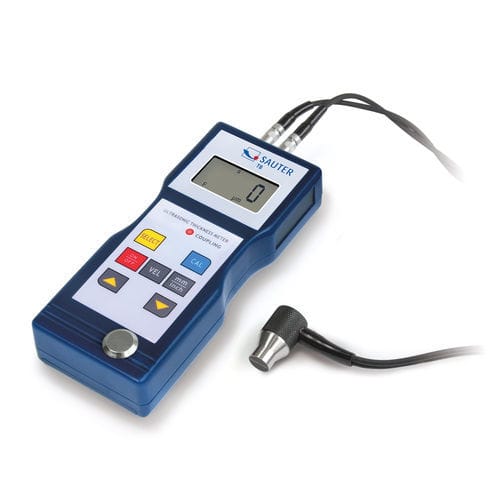

Steel thickness gauge TB 200-0.1US-REDmaterialcopperaluminum
Add to favorites
Compare this product
Characteristics
- Applications
- steel, material, copper, aluminum
- Type
- portable
- Technology
- ultrasonic
- Measuring range
Max.: 200 mm
(7.87 in)Min.: 1.5 mm
(0.06 in)- Measurement accuracy
0.1 mm
(0.004 in)- Measuring rate
5 MHz
Description
External measuring head for difficult-to-access measuring points
Base plate for adjustment included
Auto-Power-Off
Selectable measuring units: mm inch
'RED' stands for reduced measurement range. Can only analyse these materials: cast iron, aluminium, copper, brass, zinc, quartz glass, polyehylene, PVC, grey cast iron, nodular cast iron, steel
Scope of delivery: Operating instructions, batteries, external measuring head (∅ 8 mm) and ultrasound contact gel
Delivered in a robust carrying case
Catalogs
Measuring Technology 2025
106 Pages
