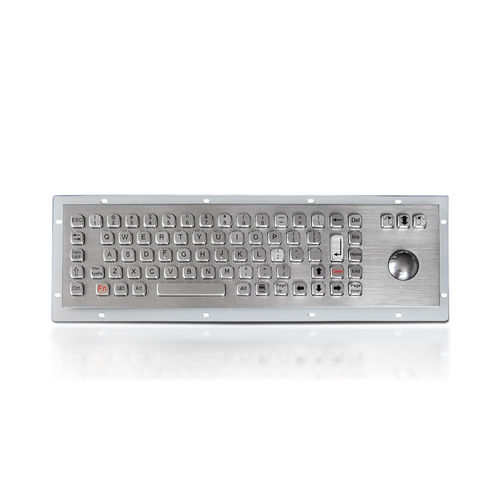

Panel-mount keyboard K-TEK-A392-OTB-DWP
with 3 mouse keys75-keywith trackball

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with 3 mouse keys, 75-key
Pointing device
with trackball
Domain
for industrial applications, outdoor, for automatic distributors, for public access kiosks and internet terminals, control panel, for the automotive industry, information, for self-service information kiosk, for mining applications, for the navy
Material
brushed stainless steel
Protection level
rugged, washdown, vandal-proof, rugged, robust, scratch-proof, IK 08, IP65
Other characteristics
waterproof, rugged, long-travel, USB, PS2

Description

75 keys IP65 washable vandal proof stainless Steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller, and IP68 dynamic rated washable 38.0mm stainless Steel optical trackball module with 800 DPI high resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial PCB with carbon-on-gold key switch technology with long stroke (1.5mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with bail rolling, 3.0mm aluminum back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, sait mist etc. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 392.0mm x 110.0mm (front panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:Optical trackball Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
