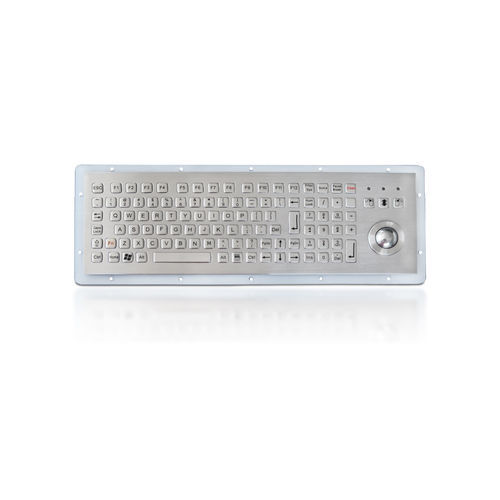

Panel-mount keyboard K-TEK-B312-OTB-KP-FN-DWP
with Fn keywith 3 mouse keys107-key

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, with 3 mouse keys, 107-key
Pointing device
with trackball
Domain
for control panels, for industrial applications, for public access kiosks and internet terminals, for clean rooms, for the food industry, health and environmental safety, information, for oil industry applications, for self-service information kiosk, for mining applications, marine, for food applications
Material
brushed stainless steel
Protection level
rugged, waterproof, vandal-proof, rugged, robust, explosion-proof, IP65
Other characteristics
compact, short-travel, ultra-slim, USB, PS2

Description

107 keys IP65 dynamic water proof rated vandal proof stainless steel industrial keyboard with full functionalities, with IP68 dynamic rated washable 25.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate position with extremely smooth operation, industrial metal dome PCB electronics controller module with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, with numeric keypad included and 12 function keys on the top line for easy operation. IP68 washable optical trackball module without metal parts inside, no rust risk and with anti-salt spray corrosion function, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, FN + CLEAN combination key to lock/disable the entire keyboard for easy cleaning and washing without needing to take away the keyboard from PC, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard trackball d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Gold on gold key switch technology PCB g. Dimension: 312.0mm x 105.0mm (top panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:25.0mm optical trackball Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
