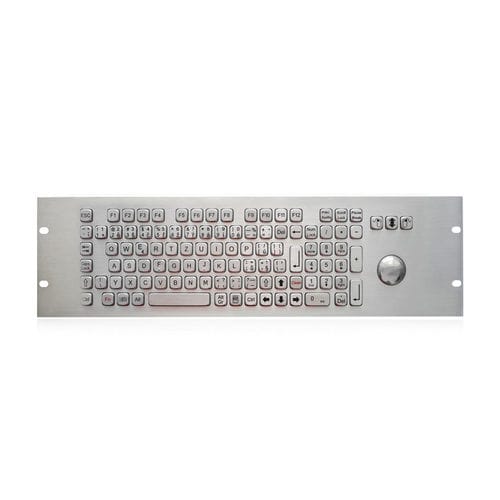

Panel-mount keyboard K-TEK-A19U-OTB-KP-FN-DWP
with mechanical keyswith 3 mouse keyswith Fn key

Panel-mount keyboard - K-TEK-A19U-OTB-KP-FN-DWP - Key Technology China Limited - with mechanical keys / with 3 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-A19U-OTB-KP-FN-DWP - Key Technology China Limited - with mechanical keys / with 3 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-A19U-OTB-KP-FN-DWP - Key Technology China Limited - with mechanical keys / with 3 mouse keys / with Fn key - image - 2
Add to favorites
Compare this product

Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, with 3 mouse keys, 104-key
Pointing device
with trackball
Domain
for industrial applications, outdoor, for public access kiosks and internet terminals, for medical applications, for the food industry, for self-service information kiosk, for oil industry applications
Connection type
USB, PS2
Structure
QWERTY
Material
brushed stainless steel
Protection level
waterproof, IK 08, IP65, IP68, IP67
Other characteristics
compact, long-travel, with numeric keypad

Description

sealing to IP67, 100Keys Integrated with IP68 38.0 mm optical trackball SUS304 Brushed stainless steel surface Mechanical trackball optional DESCRIPTION: 100 Keys Compact Format IP65 static Vandal Proof 19U Stainless Steel industrial Keyboard with full keyboard functionalities, with IP68 dynamic rated washable 38.0 mm stainless steel optical trackball module with 800 DPI resolutions tor tast and accurate cursor position with extremely smooth operation without any noise, function keys F1, F2, F12 are on the top line tor easy operation, with independent numeric keypad, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0 mm) with extremely good tactile feeling for fast and accurate data input without any noise. 3 mouse buttons designed tor right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with mounting holes on both ends tor fixing keyboards. IP68 dynamic module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion. DIMENSIONS: 482.6 mm x 133.3 mm (top panel) APPLICATION This Keyboard is mainly targeted tor use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc. MAIN FEATURE Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
