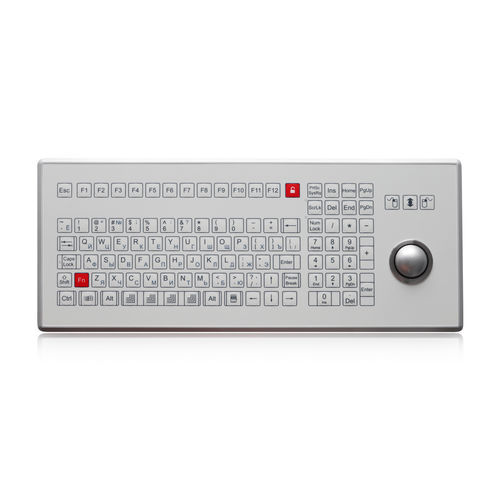

Panel-mount keyboard K-TEK-D410-OTB-KP-FN-SW-EP
micro-switchmembranewith Fn key

Panel-mount keyboard - K-TEK-D410-OTB-KP-FN-SW-EP - Key Technology China Limited - micro-switch / membrane / with Fn key
Panel-mount keyboard - K-TEK-D410-OTB-KP-FN-SW-EP - Key Technology China Limited - micro-switch / membrane / with Fn key
Panel-mount keyboard - K-TEK-D410-OTB-KP-FN-SW-EP - Key Technology China Limited - micro-switch / membrane / with Fn key - image - 2
Panel-mount keyboard - K-TEK-D410-OTB-KP-FN-SW-EP - Key Technology China Limited - micro-switch / membrane / with Fn key - image - 3
Add to favorites
Compare this product

Characteristics

Mounting
panel-mount
Key type
micro-switch, membrane
Number of keys
with Fn key, with 3 mouse keys, 106-key
Pointing device
with trackball
Domain
industrial, for clean rooms, control panel, for medical applications, for the food industry, for clean environments, health and environmental safety, for hygienic applications, chemical, for oil industry applications
Connection type
USB, PS2
Material
brushed stainless steel, aluminum alloy, polymer
Protection level
rugged, waterproof, IP65
Other characteristics
compact, custom, with numeric keypad, short-travel

Description

106 keys IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position, totally sealed and ruggedized industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+LOCK combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, top panel mounted solution with mounting studs on the backside of rugged aluminum alloy frame around the edges, which can well protect the membrane from being torn or peeled off. Dimensions: 424.0 mm x 174.0 mm (front panel)
