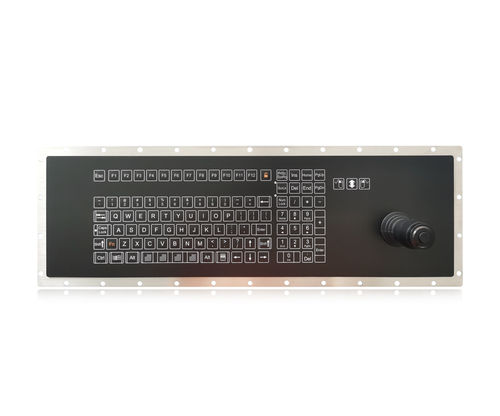

Panel-mount keyboard K-TEK-D580-KP-FN-SW+IU-360-V02
membranewith Fn key106-key

Panel-mount keyboard - K-TEK-D580-KP-FN-SW+IU-360-V02 - Key Technology China Limited - membrane / with Fn key / 106-key
Panel-mount keyboard - K-TEK-D580-KP-FN-SW+IU-360-V02 - Key Technology China Limited - membrane / with Fn key / 106-key
Panel-mount keyboard - K-TEK-D580-KP-FN-SW+IU-360-V02 - Key Technology China Limited - membrane / with Fn key / 106-key - image - 2
Add to favorites
Compare this product

Characteristics

Mounting
panel-mount
Key type
membrane
Number of keys
with Fn key, 106-key
Pointing device
with joystick
Domain
industrial, outdoor, for public access kiosks and internet terminals, for machine tools, maritime industry, for automotive applications, for aerospace applications, for aeronautical applications
Connection type
USB, PS2
Protection level
waterproof, rugged, vandal-proof, scratch-proof, weatherproof, IP65
Other characteristics
compact, embedded

Description

106 keys IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, with three mouse buttons for easy operation. The joystick can working in 3-axis joystick function with front and rear, up and down by moving the handle in any direction by (25 ° ± 2 °); totally sealed and ruggedized industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+LOCK combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with ruggedized brushed stainless steel back plate with mounting holes for rear panel mounted solution. Dimensions: 554.0 mm x 159.0 mm (front panel)
