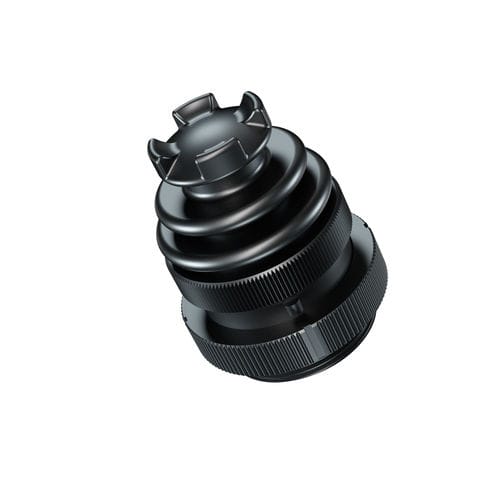

Hall effect joystick RGD-JSK-HC-2A2Efor motorized stagesfor assistive technologyfor medical applications
Add to favorites
Compare this product
Characteristics
- Technology
- Hall effect
- Applications
- for off-highway vehicles, for remote control, for utility vehicles, for medical applications, for marine applications, for aerial work platform, for agricultural machinery, for assistive technology, for motorized stages, for cranes
- Protection level
- IP65, IP67
- Other characteristics
- panel-mount
Description
• Made of high-quality industrial-grade ABS injection molding
• Thumb operation design of non-contact Hall sensing
• The material is solid, lightweight in appearance, easy and flexible to operate, has the advantages of long life and good protective performance
TECHNICAL SPECIFICATIONS
Main parts materials - ABS
Weight - 25g (maximum)
Operating force - 0 to 3 Newtons, allowable limit operating force: 35 Newtons
Input voltage - 5VDC
Current - ≤50mA
Voltage: 0~5VDC±10%, Zero voltage: 2.5VDC±0.10VDC,
Maximum output voltage 4.5VDC (minimum), Minimum output voltage 0.5VDC (maximum),
The output signal impedance is 1KΩ
Cable - 26 AWG
Operating temperature - -40℃ to + 70℃
Storage temperature - -45℃ to + 85℃
• Thumb operation design of non-contact Hall sensing
• The material is solid, lightweight in appearance, easy and flexible to operate, has the advantages of long life and good protective performance
TECHNICAL SPECIFICATIONS
Main parts materials - ABS
Weight - 25g (maximum)
Operating force - 0 to 3 Newtons, allowable limit operating force: 35 Newtons
Input voltage - 5VDC
Current - ≤50mA
Voltage: 0~5VDC±10%, Zero voltage: 2.5VDC±0.10VDC,
Maximum output voltage 4.5VDC (minimum), Minimum output voltage 0.5VDC (maximum),
The output signal impedance is 1KΩ
Cable - 26 AWG
Operating temperature - -40℃ to + 70℃
Storage temperature - -45℃ to + 85℃
