Hall effect joystick K-TEK-B100-JS-BT

with buttons3-keyfor motorized stages

1. Product Overview

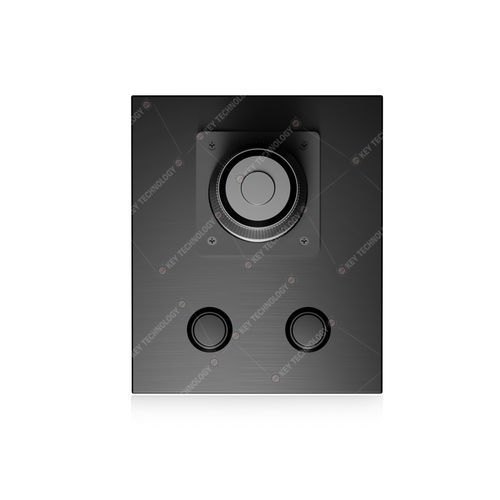

This is an IP65 heavy-duty rugged joystick designed for industrial and military-grade control systems. The entire internal electronic controller is fully shielded and protected by a stainless steel housing. The top stainless steel plate adopts premium black titanium electroplating treatment for superior durability and wear resistance. The unit supports 3-axis precise operation and dual working modes (mouse protocol / joystick protocol optional). It comes with one top button (configurable as left/right mouse button before delivery) and optional dual sealed stainless steel mouse buttons. Adopting USB2.0 interface and threaded bolt top panel mounting design, it features plug-and-play use and easy installation.

2. Key Features
- IP65 Full Protection – Dustproof and waterproof, fully enclosed stainless steel structure for harsh environment application
- Premium Surface Treatment – Black titanium electroplated top stainless steel plate, anti-corrosion, scratch-resistant and long-lasting
- Precise 3-Axis Control – X/Y axis 25°±2° omnidirectional movement; Z axis 40°±3° rotational control
- Dual Working Modes – Optional standard joystick mode or mouse mode for different control system needs
- Customizable Button Layout – Single top programmable button as standard; dual stainless steel sealed mouse buttons optional
- Wide Compatibility – USB2.0 HID interface, compatible with all mainstream operating systems
- Easy Installation – Compact panel mount structure with threaded bolts for stable and fast assembly

3. Applications
Suitable for vehicle control systems, aerospace equipment, navy and maritime facilities, radar systems, industrial control consoles, and professional navigation control devices.

4. Mechanical Data
- Button Configuration: 1 programmable top button (standard); 2 sealed stainless steel mouse buttons (optional)
- Dimension: 100.0mm × 116.0mm × 41.5mm (L × W × H)
- Gross Weight: 0.5KG
- X / Y Axis Operation Strength: 0~5 N; Ultimate damage strength: 12 N
- Z Axis Rotation Torque: 0~4 N; Maximum withstand torque: ≤8 N
- Material: SUS304 brushed stainless steel (black titanium electroplated top plate), ABS
- Working Protocol: Mouse protocol / Joystick protocol (optional)

5. Electrical & Compliance Data
- Supply Voltage: DC +5V±5%
- Current Rating: 100mA
- Interface: USB 2.0 (HID compatible)
- OS Compatibility: All HID-supported operating systems
- EMC Standards: EN 55032:2015, EN 55035:2017
- Certifications: CE, FCC, RoHS Compliant

6. Environmental Adaptability & Reliability
Environmental Adaptability
- Protection Level: IP65
- Operating Temperature: -40℃ ~ +70℃
- Storage Temperature: -45℃ ~ +75℃
- Operating Relative Humidity: 30% - 90%
- Working Atmospheric Pressure: 60Kpa - 106Kpa
Reliability Performance
- Service Lifespan: Joystick: > 0.2 million actuations; Mouse buttons: > 1 million actuations
- MTBF: > 20000 hours
- MTTR: < 30 minutes

7. Technical Specifications
This industrial 3-axis rugged joystick features full stainless steel shielding structure and IP65 waterproof/dustproof capability. Adopting black titanium electroplated surface treatment, the device achieves excellent wear and corrosion resistance. It supports precise X/Y/Z axis control and dual-mode switching between mouse and joystick protocol. With standard USB2.0 HID connection, wide temperature working range, stable mechanical operation and long service life, it fully meets high-standard reliability requirements for military, marine, aerospace and heavy industrial control scenarios.
