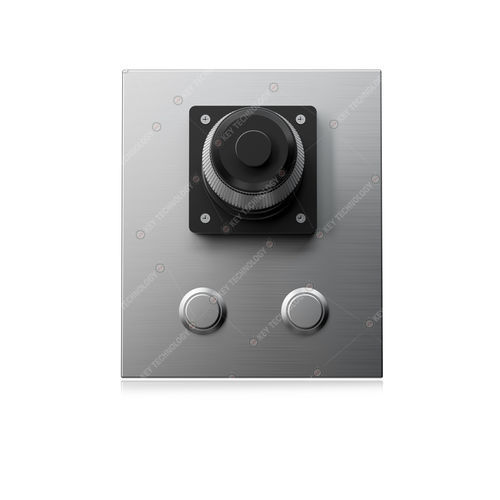

Hall effect joystick K-TEK-B100-JS

with buttons3-keyfor assistive technology

1. Product Overview
This is an IP65 industrial rugged joystick featured with a full stainless steel protective housing, which fully shields and protects all internal electronic controllers. It is equipped with sealed stainless steel mouse buttons and supports dual working modes (joystick / mouse function optional). Adopting top panel mounting with threaded bolts and standard USB 2.0 interface, the device is compact, easy for installation and plug-and-play. The joystick supports 3-axis control (X/Y/Z axis) with precise angle control, and the top button can be pre-programmed as left or right mouse button before factory delivery, suitable for various harsh industrial and military scenarios.

2. Key Features
- High-level Protection: IP65 waterproof and dustproof grade, fully enclosed stainless steel structure for harsh environment resistance
- 3-Axis Precise Control: X/Y axis free movement (25°±2°) and Z-axis rotation control (40°±3°) for accurate operation
- Dual Functional Modes: Optional joystick protocol or mouse protocol to meet different equipment control demands
- Customizable Buttons: Standard 1 top button (configurable as left/right mouse button); optional dual sealed stainless steel mouse buttons
- Durable & Reliable: Long service lifespan and high MTBF, stable for long-term continuous operation
- Universal Compatibility: USB2.0 HID interface, compatible with all mainstream operating systems
- Easy Installation: Top panel mounting design with threaded bolts, simple and firm assembly

3. Applications
Widely applicable for vehicle systems, aerospace equipment, naval and maritime facilities, radar systems, industrial control consoles, navigation control systems and other rugged industrial and military control scenarios.

4. Mechanical Data
- Button Configuration: 1 top joystick button (factory pre-configurable as left/right mouse key); 2 stainless steel sealed mouse buttons (optional)
- Overall Dimension: 100.0mm (L) × 116.0mm (W) × 41.5mm (H)
- Gross Weight: 0.5KG
- X/Y Axis Operating Force: 0~5 N; Ultimate damage resistance force: 12 N
- Z Axis Rotation Torque: 0~4 N; Maximum withstand torque: ≤8 N
- Main Material: High-quality SUS304 brushed stainless steel + ABS
- Working Protocol: Optional mouse protocol / joystick protocol

5. Electrical & Compliance Data
- Supply Voltage: DC +5V±5%
- Rated Current: 100mA
- Interface Standard: USB 2.0 (HID compatible)
- Compatible OS: All operating systems supporting HID devices
- EMC Standard: EN 55032:2015, EN 55035:2017
- Certifications: CE, FCC, RoHS Compliant

6. Environmental Adaptability & Reliability
Environmental Adaptability
- Operating Temperature: -40℃ to +70℃
- Storage Temperature: -45℃ to +75℃
- Operating Humidity: 30% - 90% RH
- Working Atmospheric Pressure: 60 - 106Kpa
- Protection Level: IP65
Reliability Parameters
- Service Lifespan: Joystick > 0.2 million actuations; Mouse buttons > 1 million actuations
- MTBF (Mean Time Between Failures): >20000 hours
- MTTR (Mean Time To Repair):
7. Technical Specifications
Integrated all core technical parameters as finalized above: The IP65 rugged joystick adopts SUS304 stainless steel housing and ABS structural materials, with 3-axis precise control capability and dual-mode (mouse/joystick) switching function. It features wide temperature resistance, excellent electromagnetic compatibility and environmental adaptability. Equipped with standard USB2.0 HID interface and customizable button functions, it supports panel mounting installation. With long service life and low maintenance cost, it fully meets the high-reliability operation requirements of military, marine, aerospace and industrial control equipment under extreme working conditions.
