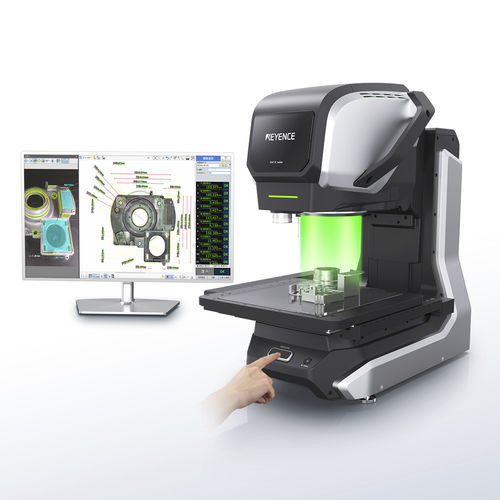

Dimensional measuring system IM-X1000

laseropticalautomatic

Instantly measure your parts with the push of a button. The Instant Measurement System takes place-and-press measurement to the next level with a significantly increased measurement range of up to 500 mm and multisensor capabilities including; optical, probe, laser, and rotary. This system features a new automatic drawing import function to help automate programming by importing CAD files and now PDF, JPEG and paper drawings. Furthermore, the built-in Smart Assist tool auto-optimises focus and lighting for expert level programming and optimal performance even with no prior optical metrology experience. This new Instant Measurement System enables fast, easy, and accurate inspections, even on large parts. For a Wide Range of Applications, From Small Parts to Large New Feature: Extra-Wide Large Stage (500 mm in Size) The system has a significantly increased measurement range that is 3.3x that of previous generations. Furthermore, it can handle taller parts with a maximum height of 2.7x that of previous generations. This latest system makes it possible to measure large parts with a single operation. Extra-wide large stage with dimensions of X: 500 mm × Y: 400 mm Increased Z range up to 200 mm From Drawing to Program in 3 Steps Easily create programs by importing CAD, PDF, JPEG and even paper drawings. Just select your critical dimensions, design values, and tolerances to create a program Accurate Measurement in Three Dimensions The low-measuring-pressure touch probe moves freely vertically, horizontally, and at an angle, allowing the desired points to be measured with a soft touch. Even parts with 3D shapes can be measured accurately.
