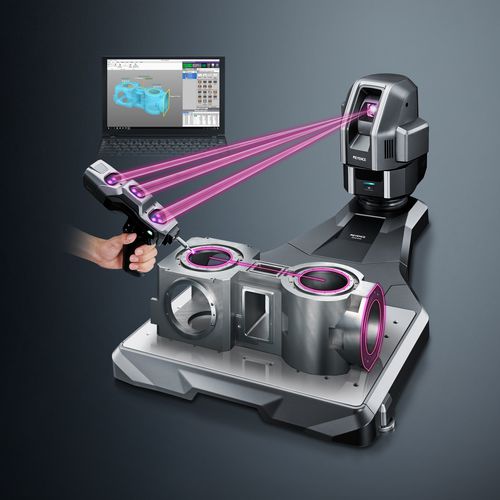

Computer-controlled coordinate measuring machine XM-5000 series

portableopticalautomated

Portable, Benchtop CMM High-accuracy measurement over a large area; on or off the system High-accuracy 3D measurement with a handheld probe Large-area measurement with a maximum measurement size of 2 m Selectable measurement styles The XM Series is a handheld coordinate measuring machine (CMM) that lets anyone easily measure 3D/GD&T features. The system is portable and shop-floor ready, so measurements can be taken in any location. The unit also automatically records measurement data and creates detailed inspection reports. The images showcases our latest XM-5000 model which allows high-accuracy measurement for palm-sized parts to large applications. High-Accuracy 3D Measurement With a Handheld Probe Targets can be approached from any angle, allowing for intuitive measurement. The measurement results displayed on the monitor are easy to understand and include images. Large-Area Measurement With a Maximum Measurement Size of 2 m The measurement space is 66 times larger than that of conventional models. Everything from palm-sized parts to large parts can be measured. Selectable Measurement Styles The measuring head can be installed not only on the stage but also on a dedicated mount or tripod. This new-concept coordinate measuring machine can be placed anywhere.
