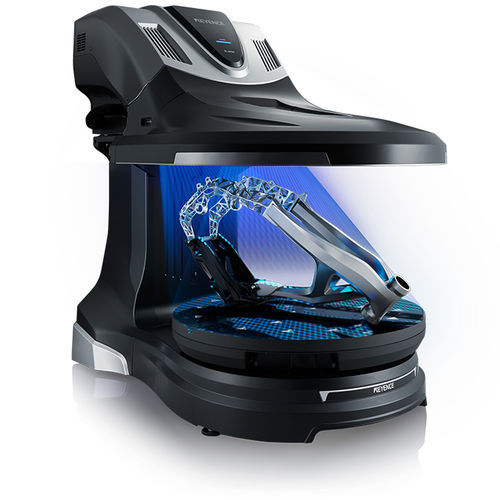

Computer-controlled coordinate measuring machine VL-800 series

portableopticaltabletop

The VL-800 Series 3D Scanner CMM is the first in its lineup to feature 3D-AI, making high-quality 3D data acquisition and analysis effortless for any user. The system intelligently recommends optimal scanning, stitching, and measurement methods based on the shape of the part being analyzed. Additionally, scanned parts can be directly compared to their CAD models for quick visualization of differences, or the 3D scan can be used to streamline reverse engineering processes. From scanning to STEP file output, the VL-800 handles everything automatically, and provides accurate data in a format accessible by any CAD software. High-Accuracy, Full 360° Scanning The advanced structure of the VL-800 Series along with new AI software means that anyone can simply place a part on the stage and generate a 3D scan - no need for fixtures or reference targets/stickers. The software will automatically combine the scans into a complete 360⁰ model. Flexible Measurement and Analysis of Any Shape While conventional measurement systems such as profilometers or coordinate measuring machines measure using points or lines, the VL-800 is able to provide a full 3D scan of an object, giving users the ability to measure their parts in ways they never imagined. Compare against 3D-CAD data to visualize differences 3D measurement tools for any geometric or freeform shape Automatically generated virtual cross-sections 12 different GD&T measurements What Is the Best Way to Measure and Analyze My Part? AI suggests the most appropriate measurement tools, making 3D analysis accessible to anyone at the click of a button.
