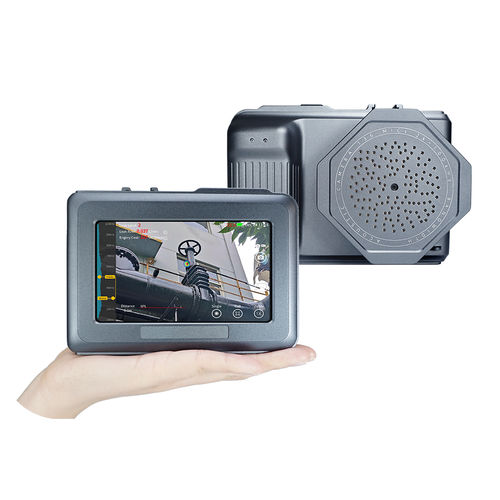

Digital imager DES-C136

acousticindustrialfor partial discharge detection

Acoustic Imagers (referred to as "acoustic camera" or "sound camera") are devices that visualize sound, and are specifically designed to detect and accurately locate audible or airborne ultrasonic sound sources. In the power supply system, defects such as cracks in high-voltage insulators may cause electrical partial discharge phenomena. Similarly, leaks in high-pressure gas pipelines can cause the ejection of high-speed airflow. These partial discharges and high-pressure gas leaks can excite the air to produce sound or ultrasonic signals. Acoustic imagers can capture these signals and locate the defects and leakage points that generate partial discharges. KEYGOTECH DES-C136 Mini Acoustic Imager is a miniature portable acoustic camera. The DES-C136 is of the size of a palm, providing a more user-friendly experience while still having good sound source localization capabilities. · 136 highly sensitive MEMS microphones Microphone array · 2 kHz to 100 kHz, Adjustable range Bandwidth · 5-inch touch screen, 1280×720 Display screen · Gas Leak Localization · Partial Discharge Localization · Mechanical Noise Visualization The imager integrates up to 136 highly sensitive MEMS ultrasonic sensors in an optimised pattern. These sensors capture the sound with very low amplitude, allowing you to locate the sound sources easier and faster. The weight of DES-C136 is approximately 800 grams and can be held with one hand for a long time. This camera is designed with all aluminum alloy material, which is not only sturdy and durable, but also stylish in appearance. The DES-C136 can be used in a very wide frequency range up to 100 kHz, making it suitable for a wide range of applications, such as locating compressed air leaks and partial discharges. The design of DES-C136 is similar to that of a digital camera, subverting the stereotype of traditional acoustic cameras, making the sound source location more intuitive and easier to use, and not requiring complex training and professional skills. You can easily use this acoustic camera and make your sound source location task fast and effective.
