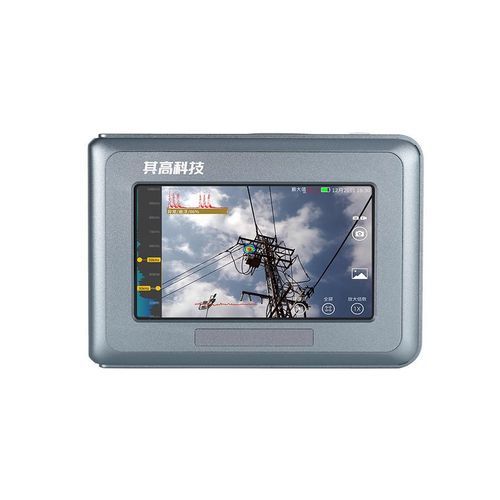

Acoustic imager DES-C200

industrialfor gas leak detectionfor partial discharge detection

KEYGOTECH DES-C200 Acoustic Imager is a miniature portable acoustic camera. The weight of DES-C200 is approximately 750 grams and can be held with one hand for a long time,providing a more user-friendly experience while still having good sound source localization ability.


The imager integrates up to 212 highly sensitive MEMS ultrasonic sensors in anoptimised pattern.These sensors capture the sound with very low amplitude, allowing you to locate the sound sources easier and faster. The DES-C200 can be used in a very wide frequency range up to 100 kHz, making it suitable for a wide range of applications, such as locating compressed air leaks and partial discharges.


The design of DES-C200 is similar to that of a digital camera, subverting the stereotype of traditional acoustic cameras, making
the sound source location more intuitive and easier to use, and not requiring complex training and professional skills. You can easily use this acoustic camera and make your sound source location task fast and effective.
