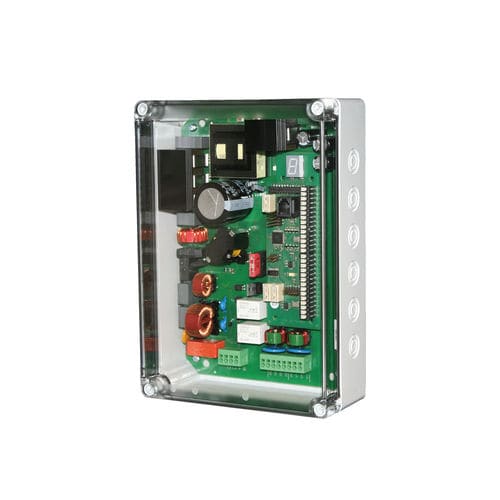

Configurable control system iVent/2 10A

compactintegrated24 V

• Integrated standard ventilation control funktion • Visual display of malfunctions and operating status • Optional cascading of multiple iVent/2 8A and operation via one or several vent switches • Functions governing interaction with shades 1) • Functions governing interaction with shades • Internal function monitor signals malfunctions • Time-dependent stroke limitation1) • Automatic ventilation via temperature1) • Automatic closing after a set time1) • Manual ventilation, pulse or keypad (dead man) operation1) • Alteration of the properties governing the operating displays1) • Adjustable pause time when reversing drive voltage polarity1) • Higher-level closing function in case of rain 1) Full functional scope only possible using a notebook/PC with Service Port Software installed, and a connecting cable. Applications: • Natural aeration and ventilation Eectrical properties • Primary energy supplyOperating voltage: 230 V AC / 50-60 Hz • Power consumption: Max. 310 W (according to the output load) • Power consumption (standby): Max. 7 W • Connecting terminal: Max. 2.5 mm², spring terminal • Fuse: 3.15 A/T (not removable) Actuator output • Voltage: 27.5 V DC (- 15 % / + 10 %) • Ripple: 0.3 Vss Current: 10 A at ED 30 % (10 min); 4 A at ED 100 % • Connecting terminal: Max. 2.5 mm², spring terminal • Fuse: FKS 10 A / 32 V Wind/rain detector output • Voltage: 27.5 V • Current: Max. 100 mA, 100% ED • Connecting terminal: Max. 1.5 mm², spring terminal • Line monitoring function: No • Max. quantity: Depending on the current consumption • Fuse: via motor fuse
