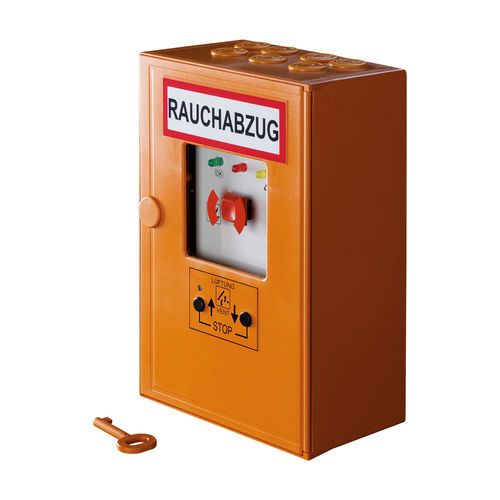

Manual call point TRZ

• Max. 2 A current output • Color: Orange/ Grey/ Yellow/ Blue/ Red • Without maintenance timer • Including the "daily ventilation" function • One SHEV group (RG) and one ventilation group (LG) • PC service port interface for extended configuration options • Built-in power supply 230 V AC/24 V DC, emergency batteries and charging unit for 72 hours of operational readiness in the event of a power failure • Optionally available as a flush-mounted version • TÜV type-tested • Tested in accordance with EN 12101-10:2005/AC:2007 Material • Plastic housing for surface mounting Connection options • 24 V DC drives with own load or limit switching with a total current consumption of max. 2 A • 10 SHEV control panels RBH/3A... • 10 automatic detectors in 2-wire technology • 10 external ventilation open/stop/close buttons (with or without open display) • 24 V DC siren or flashing light, max. 100 mA • One connection each for potential-free signaling: SHE triggered (NO contact) and fault (NC contact); 24 V / max. 0.5 A
