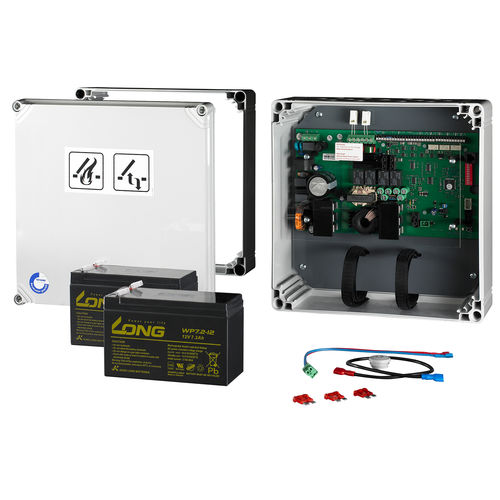

Power control panel 8A

for ventilation systemscompactparallel

• 8 A current output • including the "daily ventilation" function • one smoke vent group (RG) and two ventilation groups (LG) • two motor circuits • 24 V power supply, emergency power batteries and charging unit, parallel operation, 72 h function maintenance in case of power failure • Line monitoring of the detector circuits (automatic detectors and RWA control points) and the connected drives • Adjustable special functions • PC service port interface for extended configuration options • Built-in maintenance timer • Lockable door • in surface-mounted housing, with optional flush-mounted metal frame • TÜV type tested Connection options • 24 V DC drives with own load or limit switching, freely divisible into two motor circuits • 10 SHEV control points RBH/3A... • 10 automatic detectors in 2-wire technology • 10 external ventilation push-buttons (with/without open indication) per ventilation group • one wind/rain detector (WRM/2 24V) or 1 rain detector (RM/2 24V) • potential-free forwarding of RWA, fault, and wind/rain signals • via one potential-free change-over contact each, max. 60 V / 0.5 A Technical data Electrical properties Primary power supply • Mains supply voltage: 230 V AC/50 Hz, (±10 %), separately fused • System voltage: 27 V DC (nominal) (-25 % /+10 %) • Power consumption: approx. 150 W at 8 A current output • Power consumption (standby): < 5 W • Connection terminal Screw terminal: max. 2.5 mm² • Fuse: Mains: 230 V AC; T 3.15 A/H, motor circuit FKS 10 A
