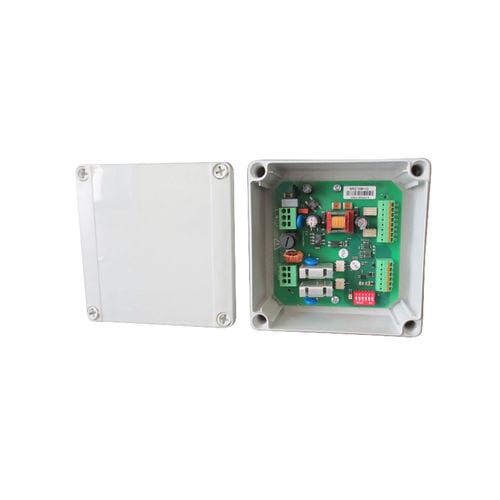

Configurable control system WRZ 10M-1G

compact24 Vuniversal

Wind/rain control unit for controlling max. 10 230V AC drives in a ventilation group • Connection for up to two WRM/2 24V wind/rain detectors or one RM/2 24V rain detector • Automatic closing of windows, flaps and skylight domes in conjunction with • in conjunction with 230V AC drives following a wind/rain signal • 4 potential-free relay contacts for multiplying and forwarding a wind/rain signal • Connection of up to 10 drives in one group • Time-dependent forwarding of the wind/rain signal. Configurable via DIP switch • Time-dependent supply of the “CLOSED” drive output (ventilation enabled despite wind/rain signal). Configurable via DIP switch • Cascading of several WRZ 10M-1G for signal multiplication possible • Status messages via optical display Connection options • The WRZ 10M-1G offers connection options for • 1 x wind/rain detector WRM/2 24 V or 1 x RM/2 24 V • Max. 10 ventilation drives 230 V AC e.g. type M3 • 4 potential-free relay contacts for forwarding a wind/rain signal
