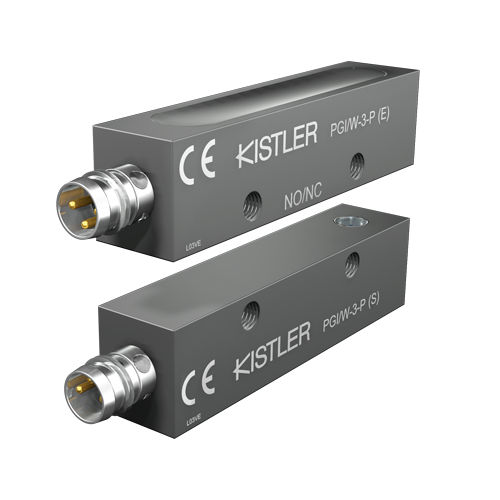

Through-beam light barrier PGI/W-3-P

IP64infrared

• Max. distance between transmitter and receiver: 700 mm • Switching function normally open / normally closed (NO/NC) • Connection: M8 plug, 3-pin Metrological characteristics Repeating accuracy, maximum 0.1 mm Electrical properties Operating voltage 12 … 30 VDC Output signal type Digital (PNP) Maximal current consumption 60 mA Circuit Chopped light trigger Load current 200 mA Dynamical properties Frequency 4 kHz Certificates and Standards General tolerance of the housing DIN ISO 2768-m Degree of protection EN 60529 IP64 EMC according to 2014/30/EU EN 61000…
