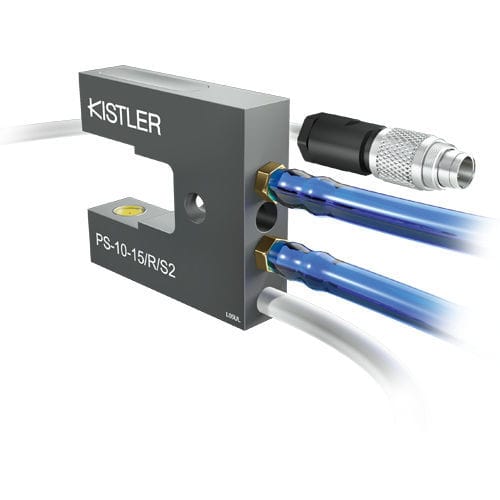

Fork light barrier PS-10-15/R/S2
Add to favorites
Compare this product
Description
• Fork width: 10 mm, fork depth: 15 mm
• Resolution with alternating light amplifier: >0.3 mm
• Resolution with pulse amplifier: 0.1 mm
Metrological characteristics
Repeating accuracy, maximum
0.01 mm
Electrical properties
Output signal type
Industrial amplifier
Certificates and Standards
General tolerance of the housing
DIN ISO 2768-m
Degree of protection EN 60529
IP64
EMC according to 2014/30/EU
EN 61000…
Operation and installation
Operating temperature range
0 … 60 °C
Usage
Feed control, Position control
Applications
Feed control, Position control
