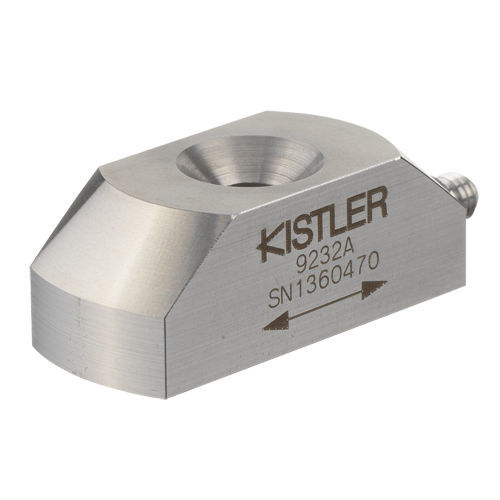

Piezoelectric strain sensor 9232A

clamp-onfor dynamic applications

• Piezoelectric sensor, measuring range: –600 … 600 με • Nominal sensitivity: –80 pC/με • Dimensions LxBxH (mm): 40x17x15 • Output connection: KIAG 10-32 neg. Measuring ranges Measuring range [µε] -600 … 600 με Product type Strain sensor type Surface strain sensor Mechanical properties Overload -900 … 900 µε Metrological characteristics Linearity ≈≤±2 %FSO Electrical properties Output signal type Charge (Piezoelectric, PE) Influence quantities Sensitivity ≈–80 pC/µε Certificates and Standards Degree of protection EN 60529 IP65 Operation and installation Operating temperature range 0 … 70 °C Cable properties Cable included No cable included Interfaces Connector type 10-32 UNF (negative) Dimensions and materials Weight 50 g
