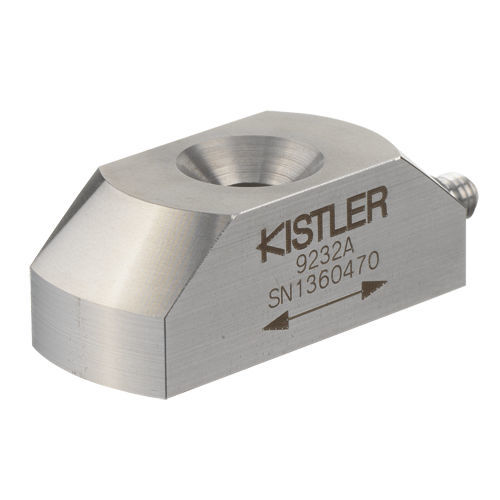

Strain sensor for dynamic applications 9232AU41screw-inclamp-on
Add to favorites
Compare this product
Characteristics
- Applications
- for dynamic applications
- Mounting
- clamp-on, screw-in
Description
• Ground-insulated surface strain transducer
• Nominal sensitivity: -80 pC/με
• Dimensions L x B x H: 40 x 17 x 15 mm
• Output connection: KIAG 10-32 neg.
Measuring ranges
Measuring range [µε]
-600 … 600 με
Product type
Strain sensor type
Surface strain sensor
Electrical properties
Output signal type
Charge (Piezoelectric, PE)
Certificates and Standards
Degree of protection EN 60529
IP65
Operation and installation
Operating temperature range
0 … 70 °C
Applications
Spot welding process monitoring
Cable properties
Cable included
No cable included
Catalogs
No catalogs are available for this product.
See all of Kistler‘s catalogs
