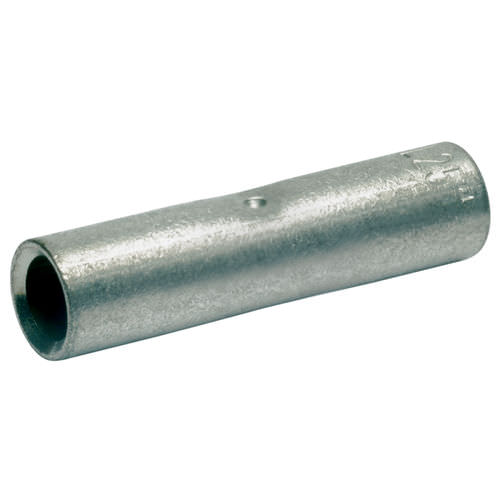

Joining bushing R series

crimpcoppertin-platted copper

Approval of the tin-plated cable lugs for use with high-temperature cables 180° C (in acc. with IEC 61238-1-1): The cable lugs can be used with class 5 tin-plated conductors (fine-stranded). For fine-stranded round conductors, e.g. to EN 60228 Cl. 5 from 0.75-4 mm² For multi-stranded round conductors, e.g. to EN 60228 Cl. 2 from 6–400 mm² For pre-rounded multi-stranded sector shaped conductors Simple cable entry due to precise internal chamfer In combination with EKM 60 ID and EK 30 ID suitable for fine-stranded conductor With reducing sleeves also suitable for connecting different cross-sections Features Simple and safe processing due to butt mark Reliable tool selection by matching code indication on the butt connector material Copper (EN13600) Surface Tin-plated to protect against corrosion Additional information Also available without butt mark as a special version, Part Number appendix "OM" Assembly instruction Sleeves for compacted conductors and sleeves for 3-core and 4-core cables, see chapter "Sleeves for compacted conductors and sector shaped conductors – Cu"
