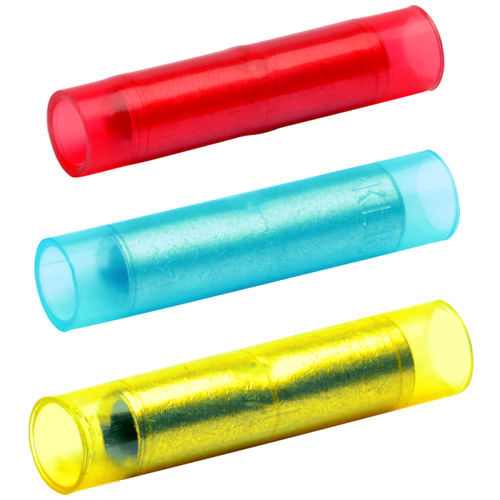

Electrical power supply connector 622R - 628R

crimpinsulatedbutt

For multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2 For pre-rounded multi-stranded sector shaped conductors No additional insulation of crimped connection required Directly crimped with insulation Features With butt marks for precise cable insertion Annealed material optimises material and crimping properties Simple cable entry due to precise internal chamfer Temperature resistance: up to 105 °C Material Connector: copper (EN 13600) Insulating sleeve: PA, halogen-free Surface Tin-plated to protect against corrosion Assembly instruction Sleeves for compacted conductors and sleeves for 3-core and 4-core cables, see chapter "Sleeves for compacted conductors and sector shaped conductors – Cu"
