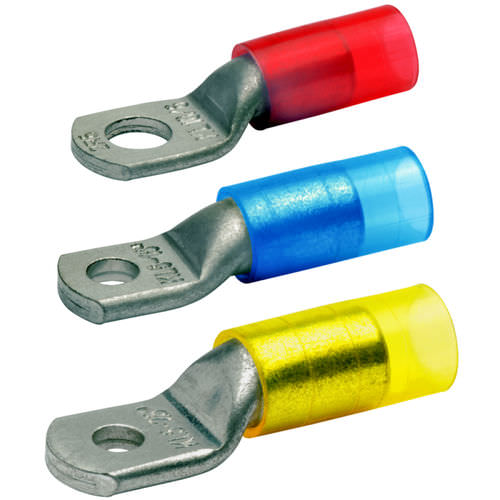

Ring solderless terminal 602R5 - 609R12

tubularinsulatedcopper

For multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2 For pre-rounded multi-stranded sector shaped conductors No additional insulation of the crimped connection required Is directly crimped with the insulation Features Annealed material optimises material and crimping properties Simple and safe connection due to flat contact surfaces and internal chamfer Temperature resistance: to 105 °C Material Cable lug: Cu according to EN 13600 Insulating sleeve: PA, halogen-free Surface Tin-plated to protect against corrosion Additional information Also available with inspection hole as a special version, Part Number appendix "MS" Assembly instruction Sleeves for compacted conductors and sleeves for 3-core and 4-core cables, see chapter "Sleeves for compacted conductors and sector shaped conductors – Cu"
