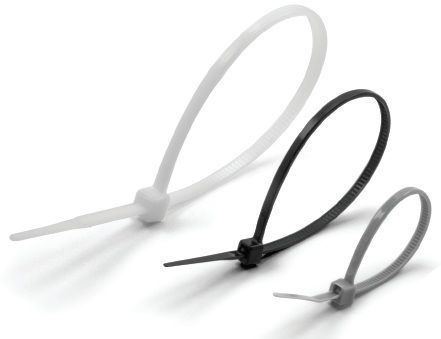

Polymer cable tie k series

polyamidepolypropylenenylon

Usage
Plastic cable ties secure cables by clamping around their diameter. Designed for rapid installation, they bundle cables together or attach them to panels and components for reliable cable management.

Advantages

• Abrasion and corrosion resistance: Suitable for demanding industrial environments.
• Electrical insulation: High dielectric properties protect conductors.
• Shock and temperature resistance: Typical service range -40°C to +105°C depending on material; UV-stabilized versions available.
• Cable retention: Prevents slippage and ensures secure fixation.

Varieties

• Anchor types: With clip-in anchors for panel fixation or without anchor.
• Edge-mount: Designed for mounting on sheet edges.
• Entry styles: Top-entry, side-entry, hinged and reusable variants.
• Sizes & colours: Multiple lengths, widths, tensile strengths and colours available on request.

Applications

• Automotive: harness routing and fixation.
• Household appliances: internal cable organisation.
• HVAC: secure routing in heating, ventilation and air-conditioning systems.
• Industrial assembly: cable management in production and equipment.

Product table (examples of columns and rows)
SKU | Ø Max Cable (mm) | A (mm) | B (mm) | L (mm) | Force (N) | Quantity | Colour
KLP-25100B | 22 | 2.5 | 1 | 100 | 80 | 250 | Black
KLP-25150B | 35 | 2.5 | 1 | 150 | 80 | 4000 | Black
KLP-25200B | 50 | 2.5 | 1 | 200 | 80 | 4000 | Black

Notes
All dimensions are in millimetres (mm). The range includes many variants in length, width, tensile force and colour to match specific cable diameters and mounting methods.

Technical specifications

• Materials: Polyamide (PA6), PP, PA+elastomer, TPE; metal clips available for special applications.
• Temperature range: typically -40°C to +105°C depending on material.
• Electrical insulation: high dielectric strength suitable for cable management.
• Corrosion & abrasion resistance: options available; some references offer >120 h salt spray resistance.
• UV resistance: available on demand for outdoor applications.
• Tensile strength examples: from ~8 N up to ~800 N depending on model.
• Packaging: standard quantities such as 100, 250, 1000, 4000 pcs depending on SKU.
• Mounting options: anchor, edge-mounted, side-entry push-fit, top/bottom entry, hinged clamps, self-adhesive mounts, mini-clips, strain-relief bushings, metal edge clips.
