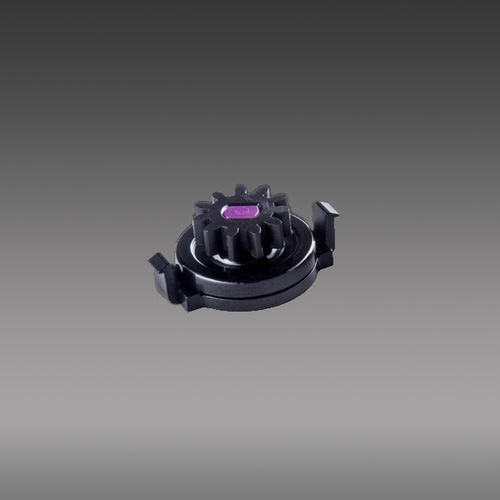

Rotary damper KRD SERIES

fluidindustrialOEM

Product overview
Klip-it rotary dampers from the KRD series provide progressive, viscous damping for controlled opening and closing of small components such as lids, drawers and access panels. The internal mechanism combines viscous fluid and rotating vanes to ensure smooth, jerk-free motion suited to industrial and OEM applications.

Applications

• Furniture: drawers, cabinet doors and hinges.
• Electronics: panels and enclosures requiring quiet, controlled movement.
• Home appliances: lids and doors for refrigerators, washing machines, etc.
• Automotive: cup holders, glove compartments and small storage units.
• Medical devices: components needing precise, gentle motion control.

Advantages

• Precise motion control: progressive deceleration to prevent abrupt closures.
• Customizable torque: multiple torque options to match application requirements.
• Designed for series production: standardized SKUs and packaging quantities for OEM supply.
• Simple integration: mounting types A (screw) and B (hooks) for flexible assembly.

Product variants (examples)

• SKU KRD-25B-1115B-LB — Torque: 0.25 N·cm — Qty: 1000 — Colour: Black
• SKU KRD-40B-1115B-LB — Torque: 0.4 N·cm — Qty: 1000 — Colour: Black
• SKU KRD-70B-1115B-LB — Torque: 0.7 N·cm — Qty: 1000 — Colour: Black
• SKU KRD-120B-1115B-LB — Torque: 1.2 N·cm — Qty: 1000 — Colour: Black
• SKU KRD-150A-1115B-LB — Torque: 1.5 N·cm — Qty: 1000 — Colour: Black

Technical specifications

• Mechanism: viscous fluid with rotating vanes for progressive damping.
• Materials: PC / POM components.
• Torque range (examples): 0.25–1.50 N·cm depending on SKU.
• Fixing types: A (screw) and B (hooks).
• Standard packaging: typical lot size 1000 pcs (see variant list).

Measurements
All dimensions and tolerances are expressed in millimetres (mm) and are available on the technical datasheets for each SKU.
