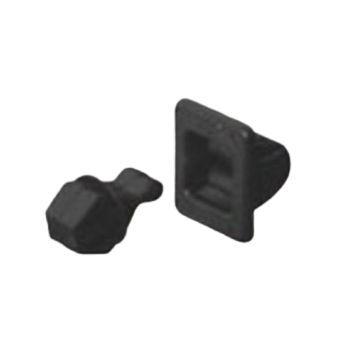

Push-to-close latch KGP series

self-closingPA6 plasticPP

Usage
Plastic catch and bolt systems are designed to ensure the secure closure of panels, doors or hatches. The self-locking mechanism provides a reliable fixation while enabling quick opening for ease of access.

Advantages

• Easy and quick installation: Tool-free assembly for time savings.
• Weather-resistant: Protects against moisture and corrosion.
• Lightweight and durable: Offers an optimal combination for various environments.
• Versatile fastening: Can be installed via anchoring or 1/4-turn to suit specific needs.
• Durability: Resistant to wear and repeated cycles of opening and closing.

Varieties

• Push-to-close latches: For fast and ergonomic closures.
• Standard and custom solutions: Tailored to meet specific user requirements.

Applications

• Industry: Secure closure for access panels.
• Electronics equipment: Ergonomic fastening of components.
• Home appliances: Simplified locking for doors and hatches.
• Light furniture: Discreet and effective assembly of drawers and doors.

Notes
Measurements are expressed in millimeters (mm).

Table - Example product variants (excerpt)
SKU | Min. panel thickness | Max. panel thickness | Type | Force (N) | Colour
KGP-ZMC-0510N | 0.5 | 1 | Male B | See female ZF | Natural
KGP-ZF60-0915B | 0.8 | 0.8 | Female | 60 N | Black
KGP-ZF50-0915N | 0.9 | 1.5 | Female | 50 N | Natural

Technical characteristics / Specifications

• Material options: plastics (PA/PP/TPE/PUR variants depending on model) and metal variants for specific items.
• Self-locking push latch mechanism for secure closure and quick release.
• Installation methods: push-fit anchoring, screw mounting or 1/4-turn depending on model/type.
• Panel thickness compatibility: many variants covering Min. panel thickness from approx. 0.3–3 mm and Max. panel thickness up to approx. 2–28 mm depending on model.
• Hole / mounting diameters and head diameters vary by model (examples in product table: Hole Ø 4.75 ±0.08, Ø 6.35 ±0.08, etc.).
• Available 'Type' families: Male (A/B/C), Female, Male 96/127, Anchor, Screw, NR, R and other standardized types.
• Retention / actuation forces: examples include 25N, 30N, 50N, 60N depending on model.
• Colour options: Natural, Black, Brown, Clear, Blue, Metal and others depending on model.
• Quantities: supplied in commercial pack sizes (examples in table: 750, 1500, 2250, 3000, etc.).
• Measurements unit: mm for dimensions; forces in N.
