Storage cabinet 7FN-NH1000FD-AKK3XRB

for toolsprotectivecharging

Product description

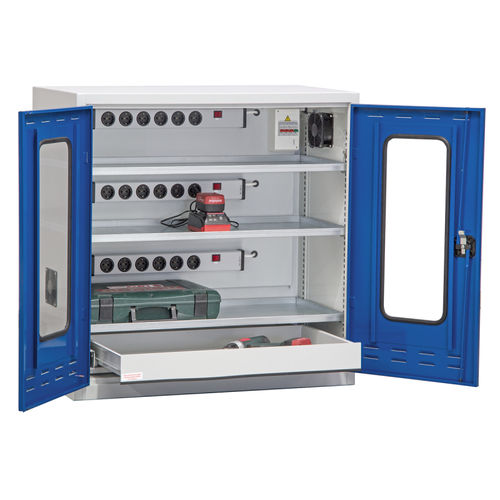

Battery charging cabinet with acrylic viewing window and lockable hinged doors. Dimensions: 1000 x 1000 x 490 mm (H x W x D).

Equipment

• 3 galvanized, height-adjustable shelves (adjustable in 20 mm increments)
• Shelf load capacity: 80 kg (with evenly distributed load)
• 1 drawer 100 mm, bottom mounted
• 3 power strips each with 6 earthed sockets and switches
• Fan mounted on the right side
• Fixed-value temperature sensor: switches the fan on at approx. 45 °C internal cabinet temperature; reset at approx. 33 °C
• External device connector: CEE 5x16A/400V/6h (rear right side)

Function / Advantages

• Viewing window allows inspection without opening the door
• Temperature control increases fan service life and reduces noise inside the cabinet
• Galvanized shelves and lockable doors ensure secure storage and charging of batteries, phones, laptops and tools

Delivery note
Ready for dispatch in 40 working days.

Technical specifications

• Item no. / SKU: 7FN-NH1000FD-AKK3XRB
• Commercial name: Akkuladeschrank 3xF Sichtfenster
• Material: Metal
• Number of hinged doors: 2
• Number of shelves: 3 (galvanized, height-adjustable)
• Shelf load capacity: 80 kg (with evenly distributed load)
• Max. charging load: 40
• Power strips: 3
• Sockets per strip: 6
• Number of drawers: 1 (100 mm, bottom mounted)
• Dimensions (H x W x D): 1000 x 1000 x 490 mm
• Weight: 75 kg
• Temperature sensor: on at approx. 45 °C, reset at approx. 33 °C
• External connection: CEE 5x16A/400V/6h (rear right side)
• EAN: 4051152283205
• Standard colour options (examples): Frame/corpus RAL 7035 - Light grey; Fronts RAL 5010 - Gentian blue (other RAL options available)
