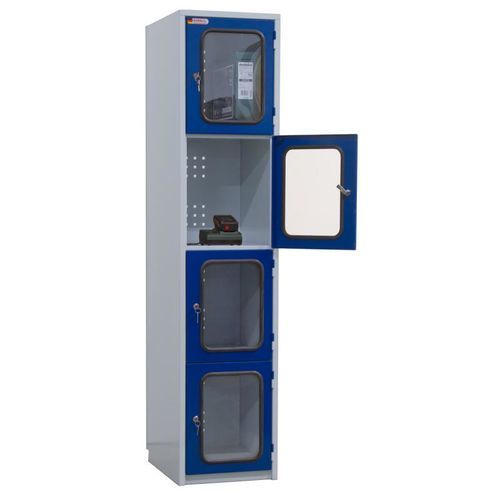

Mobile device charging station 08/87S-4-AKKU

ACcabinetmultiplace

Short description
Compartment charging cabinet - 1850 x 400 x 500/540 mm (H x W x D), with 4 compartments. Internal dimensions per compartment: 445 x 370 x 480 mm (H x W x D). Clear opening per compartment: 420 x 330 mm (H x W). Perforated rear panel for ventilation. Doors lockable with cylinder lock.

Details
All doors fitted with an acrylic viewing window including a safety rubber gasket. Each cylinder lock is supplied with 2 keys; compartments are keyed differently. Each compartment is equipped with an industrial socket IP54 230 V / 50 Hz. Power lead to the cabinet: approx. 3 m with Schuko plug.

Interior equipment and adjustability
The supplied shelf supports allow shelf adjustment on a 20 mm pitch, quickly and easily using the slotted rail.

Delivery / availability
Ready for dispatch in 10 working days.

Technical specifications

• Material: steel sheet
• With viewing window: yes (acrylic with safety rubber gasket)
• Compartment height (internal): 445 mm
• Compartment width (internal): 370 mm
• Compartment depth (internal): 480 mm
• Clear opening per compartment: 420 x 330 mm (H x W)
• Total number of compartments: 4
• Compartments side-by-side: 1
• Compartments stacked: 4
• Locking type: cylinder lock (2 keys per compartment, keyed differently)
• Height (overall): 1850 mm
• Width (overall): 400 mm
• Depth (overall): 500 mm
• Weight (product): 58 kg
• Electrical equipment: industrial socket IP54 230 V / 50 Hz in each compartment; power lead approx. 3 m with Schuko plug
• Rear panel: perforated for ventilation
• Shelf supports: adjustable in 20 mm increments
• Shelf load capacity (note): shelves at least 80 kg with evenly distributed load (heavy-duty variants up to 200 kg)
• Special order numbers / EAN: 4051152843546
• Article no.: 08/87S-4-AKKU
