Charge rack for high-temperature applications 7FN-NH2000FD-AKK4XRB

Short description

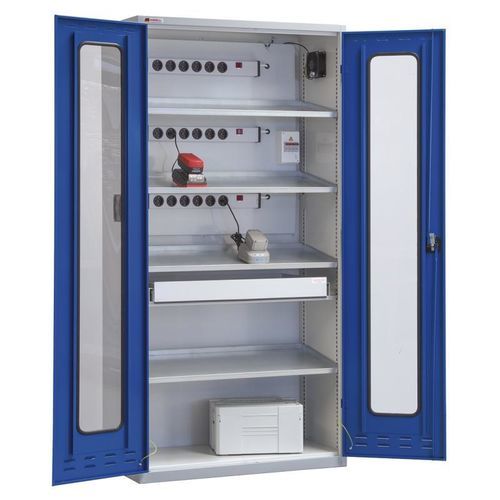

Battery charging cabinet 2000 x 1000 x 490 mm H x W x D with lockable hinged doors (ventilation perforations top and bottom). Includes acrylic viewing window.

Description / equipment
Battery charging cabinet
2000 x 1000 x 490 mm H x W x D
with lockable hinged doors (vented top and bottom)
including acrylic viewing window
Equipment:

• 4 galvanized, height-adjustable shelves
• Shelf load capacity: 80 kg (with evenly distributed load)
• 1 drawer 100 mm (mounted at bottom)
• 3 power strips each with 6 protective-earth sockets and switch
• Fan mounted on right side
• Fixed-value temperature sensor: switches the top-installed fan off at a cabinet internal temperature of approx. 45 °C; reset temperature approx. 33 °C
• Connection: 5-pin CEE cable 16N400V/6h to CEE16N400V/6h appliance plug mounted externally on the cabinet body (right rear side)

Notes
The built-in temperature sensor increases fan longevity and reduces noise in enclosed spaces.
Ready for dispatch in 40 working days.
Available quantity (product page): 10

Technical characteristics / specifications

• Material: metal
• Number of hinged doors: 2
• Number of shelves: 4 (galvanized, height-adjustable)
• Shelf load capacity: 80 kg (with evenly distributed load)
• max. charging load: 40 (as indicated on the product page)
• Power strips: 3
• Sockets per strip: 6 (protective-earth)
• Number of drawers: 1 (100 mm, bottom-mounted)
• Height (cabinet): 2000 mm
• Width: 1000 mm
• Depth: 490 mm
• Cabinet depth (tab entry): 490 mm (H x W x D = 2000 x 1000 x 490 mm)
• Fan: right side, controlled by fixed-value temperature sensor (switch at ~45 °C, reset ~33 °C)
• Connection: 5-pin CEE cable 16N400V/6h, appliance plug CEE16N400V/6h mounted externally on the body (right rear side)
• Weight (product meta): 120 kg
• EAN: 4051152283212
