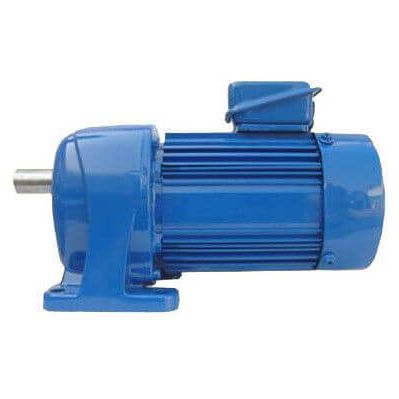

Cycloidal gear reducer X/B/JXJ seriescoaxialsolid-shaft> 10 kNm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- > 10 kNm, 200 - 500 Nm, 100 - 200 Nm, 1 - 2 kNm, 2 - 5 kNm, 500 - 1000 Nm, 5 - 10 kNm
- Mounting
- foot-mounted
- Configuration
- compact, flange
- Applications
- for electric motors
- Power
Max.: 55 kW
(74.78 hp)Min.: 0.37 kW
(0.5 hp)
Description
FEATURES:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise
5. Long service life
Rated Power:0.37KW~55KW
Max. Torque:150~20,000N.m
Gear Arrangement: Cycloid & Pin Wheel
Shafts Position:Coaxial / Inline
Ratio:9~1849
Installation Form: Foot, Flange Mounted
INSTALLATION:
Foot Mounted
Flange Mounted
1. Housing: Cast Iron
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)
IEC-normalized Motor Flange
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output
