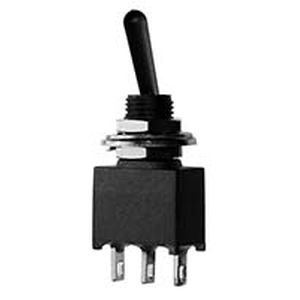

lever switch / single-pole / AC / mechanical
MZME series

{{requestButtons}}

Characteristics

  • Type:

    lever

  • Number of poles:

    single-pole

  • Other characteristics:

    AC, mechanical, miniature, electromechanical

  • Protection level:

    waterproof, IP67

  • Voltage:

    20 V

Description

Specifications:
Contact rating: 20 V AC, 0,4 VA
Contact resistance: 1000 MΩ
Dielectric strength: 1000 V, 50 Hz for the duration of 1 minute
Operating temperature: – 30° to + 85° C
Mechanical life: minimum 30 000 operations
Contacts: gold-plated over nickel barrier
Terminals: solder tags or PC terminals
Material: case: PA/PES meets UL 94 V–0, waterproof
lever: PA meets UL 94 V–0, waterproof
Water proofing: IP 67
Mounting: bushing 1/4” (6,35 mm), with locking ring
or on pc-board
Soldering conditions: hand-soldering – max.: 5 sec, 350° C
auto-soldering – max.: 10 sec, 260° C
ESD resistance: > 8 kV (between lever and terminals)
