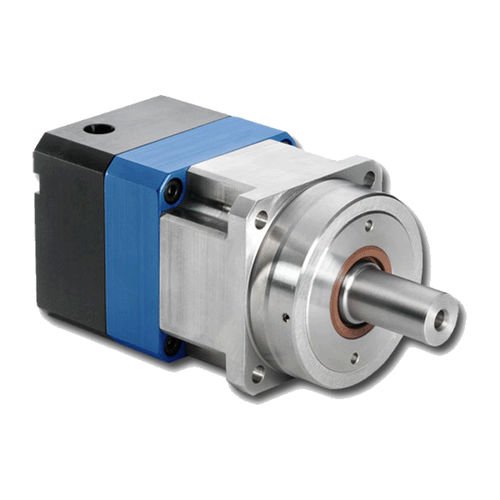

Planetary gearhead EverTRUE™
coaxial1 - 2 kNmhigh-efficiency

planetary gearhead
planetary gearhead
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
1 - 2 kNm
Performance
high-efficiency, low-backlash, high-torque, high-capacity, maintenance-free
Other characteristics
stainless steel, for heavy-duty applications

Description

EverTRUE™ Series gearheads are designed for continuous duty applications. These gearheads are lubricated for life and rated to last a minimum of 30,000 hours while running 24 hours per day, 7 days per week. Like all TRUE Planetary™ gearheads, the EverTRUE Series is designed for maximum torque capacity, high efficiency and low backlash. Features • Backlash: 4 arc-min • Ratios available from 4:1 through 100:1 • Single piece output shaft • High-capacity tapered roller bearings and double full-complement needle bearings • Continuous-duty grease • Single-piece stainless steel output housing with integral internal gear • Input bearing with thermal compensation feature • Low operating temperatures • Rated at 30,000 hours life in continuous operation • Efficiency: 95% • Compatible with RediMount™ mounting system Benefits • Designed to run 24 hours a day, 7 days a week • High axial and radial load carrying capacity • High torque capacity • Smooth, quiet operation with minimal backlash • Quick, error-free mounting to almost any motor • Corrosion-resistant housing • “Lubed For Life” and virtually maintenance-free
