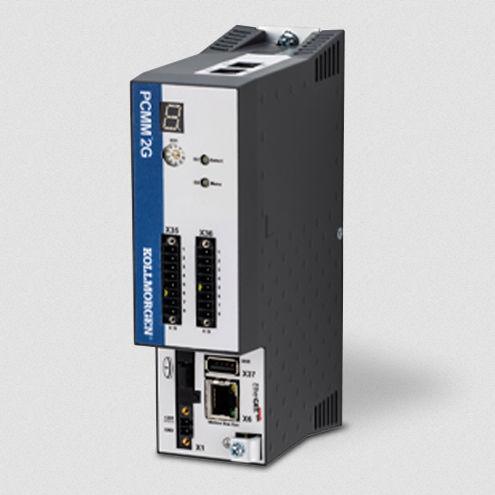

Multi-axis motion controller PCMM2G

EthernetUSBProfiNet

The Next-Generation Programmable Motion ControllerThe PCMM2G programmable controller / multi-axis master delivers industry-leading performance and flexible support for both Kollmorgen and third-party systems. Full-featured and simple to use, this compact, multi-axis motion controller scales easily to handle everything from small, simple machine modules to large, highly complex automation environments.High Performance:Uses a 1.5 GHz quad core processor to deliver 1.5–3.5 times faster fieldbus cycle rate compared to previous-generation motion-control hardware for industrial machines.Includes all the memory, connectivity and features needed for any application, large or small.One scalable motion controller hardware platform for everything from small, simple machine modules to large, high-complexity automation environments.Up to 64 axes of synchronized path motion, including S-curve and other complex moves.8 GB of internal flash memory.6 digital inputs and 2 digital outputs.Integral human-machine interface.Seamless Integration:Native component of the Kollmorgen Automation Suite, also designed to support all major industry standards for quick, straightforward integration with most third-party automation systems.100BASE-T connection supporting UDP, HTTP, Modbus, Ethernet/IP and PROFINET for fast integration with most systems.Dual Ethernet ports to allow system configuration while connected to an industrial network.Integrated tools for simple, rapid network configuration, servo tuning and machine optimization.Simplified inventory for modular or scalable machines.Reduced setup time, consolidated software and single-source ordering when using the full Kollmorgen Automation Suite.Simple Usability:Plug-and-play capabilities ensure easy setup.Integrated tools simplify and speed network configuration, servo tuning and machine optimization.Removable USB drive to support file management and backup/restore.Uninterruptible real-time clock with battery backup.Network time protocol (NTP) for reliable system synchronization.Complete online and live support.SpecificationsSpecificationDescriptionProcessorQuad-core 1.5 GHz (ARM Cortex A-72 processor)Internal Memory8 GB Flash memoryMotion NetworkEtherCAT, max 4 kHz update rateNetworking Protocols2 Ethernet Ports100BaseT connection supporting:EtherNet/IPHTTPModbus TCPPROFINETTCP/IPUDPCertificationsCE, RoHS, UKCA, ULBatteryCR2032 Lithium Manganese Dioxide primary cell, 3 V.*At least 190 mAh.Critical Temperature Limit (CPU)83°CDimensions174 mm (H) x 50 mm (W) x 111.5 mm (D)External MemoryRemovable USB flash drive slot. USB flash drive not included.High Temperature Limit (CPU)78°CInput Power24 VDC @ 1.25 ALocal I/O6 digital inputs2 digital outputsOperating Temperature (ambient range)0°C to 55°CSealingIP20*Battery is not part of the delivery packageKey Features:Scalable hardware platform for a wide range of automation environmentsUp to 64 axes of synchronized motion8 GB internal flash memory6 digital inputs, 2 digital outputsDual Ethernet ports, supporting major industrial protocolsPlug-and-play usability, removable USB, real-time clock with battery backupCE, RoHS, UKCA, UL certifiedCompact dimensions: 174 x 50 x 111.5 mm
