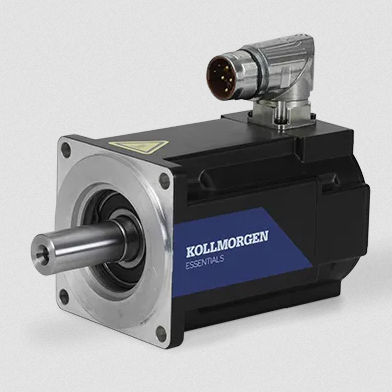

Brushless servomotor Kollmorgen Essentials™

400 V480 V240 V

Flexible Options. Value-Added Features. Kollmorgen Essentials servo motors deliver exceptional performance and versatility across eight power ranges from 200 to 4,000 watts and frame sizes from 58 to 138 mm. Each motor features the breakthrough SFD-M multi-turn absolute feedback device with energy-harvesting technology that eliminates battery backup requirements while providing positioning performance comparable to Hiperface and EnDat systems. With industry-standard IEC mounting, an innovative shaft key kit for maximum installation flexibility, and plug-and-play compatibility, these motors are engineered to reduce complexity, inventory costs, and setup time while delivering the reliability and performance your applications demand. - Available in eight power ranges from 200 to 4,000 watts and frame sizes from 58 to 138 mm - Windings rated for 120, 240, 400 or 480 VAC - 3,000 rpm rated speed, with a maximum speed of 6,000 rpm - Option for integrated 24 VDC brake - Industry-standard mounting reduces the need for excess inventory and improves field flexibility - Simple shaft key kit allows adaptation to any smooth or keyed shaft coupling type—ready, off-the-shelf, for any application SFD-M Feedback Device - Single-turn resolution of 24 bits and multi-turn resolution of 16 bits - Energy-harvesting technology eliminates the need for battery backup cables, retaining absolute positioning information even when the system is powered down or during a power outage - Onboard memory enables plug-and-play parameterization of the motor to compatible Kollmorgen drives, reducing setup time and enabling faster commissioning Specifications - 4 frame sizes: 58, 84, 108, 138 mm - 2 rated power options per frame size - Works with all standard global voltages: 120, 240, 400 or 480 VAC - Rated speed: 3,000 rpm (max speed: 6,000) - 0.74 to 17.4 Nm continuous stall torque (6.55 to 154 lb-in) in 14 frame/stack/winding combinations - Multi-turn absolute SFD-M encoder (Smart Feedback Device) offers 24-bit single-turn and 16-bit batteryless multi-turn resolution - Industry-common IEC mounting - Innovative key kit for single shaft-mount: Half key insert for smooth shaft, Full key for keyed shaft - 24 VDC brake option - IP54 standard with optional, field-installable IP65 shaft seal kit available
