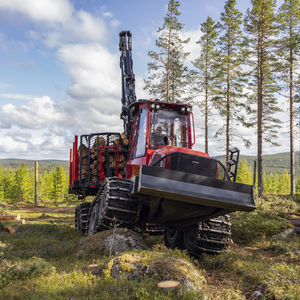

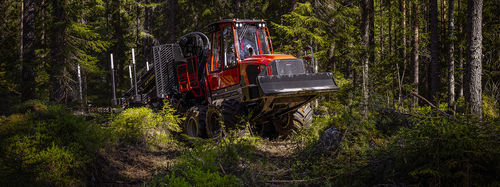

Forestry forwarder 875-2

Overview
The Komatsu 875-2 is a versatile forwarder combining power and flexibility for late thinning and final felling operations. Configurable with two load-space options and multiple crane choices to suit different harvesting tasks.

Highlights

• Operating weight: approx. 20 590 kg (8WD)
• Gross load options: 16 000 / 17 000 kg
• Engine power: 214 kW @ 1850 rpm (EU Stage V / Tier 4F)
• Crane reach: up to 10 m (multiple crane options)

Specifications
Dimensions

• Width (with 710/45x26.5 tyres): 2 980 mm
• Total length (shortest rear frame): 10 380 mm
• Front axle to middle joint: 1 900 mm
• Middle joint to rear axle (shortest rear frame): 3 480 mm
• Transport height (with hoses and tyre compression): 130F: 3 920 mm; 130F with crane tilt: 3 880 mm; 145F: 3 930 mm
• Ground clearance at steering joint: 710 mm
• Note: Dimensions are nominal and may vary with equipment and production tolerances.

Weight

• Approximate weight (8WD): 20 590 kg

Engine

• Type: AGCO Power 75FSTN-D5, 6-cylinder diesel with turbo and intercooler
• Displacement: 7.5 l
• Power: 214 kW @ 1850 rpm (EU Stage V / Tier 4F)
• Torque: 1 280 Nm @ 1 500 rpm
• Fuel tank: 210 l

Bunk area

• Gross load: 16 000 / 17 000 kg
• Bunk area: 4.6 - 6.4 m²

Crane and grapple

• Crane options: Komatsu 130F, 145F, 165F
• Reach: 130F: 8 / 10 m; 145F: 8.5 / 10 m; 165F: 7.5 / 8.5 / 10 m
• Gross lifting torque: 130F: 127 kNm; 145F: 145 kNm; 165F: 165 kNm
• Gross slewing torque: 130F: 28.7 kNm; 145F: 38 kNm; 165F: 43.4 kNm
• Rotators: G121 / GT151 / G181
• Wide selection of grapples available

Hydraulic system

• Max hydraulic flow: 370 l/min at 1 950 rpm

Electrical system

• Voltage: 24 V
• Batteries: 2 x 185 Ah
• Generator: 200 A

Transmission

• Driving speed: 0 - approx. 25 km/h
• Tractive effort: 223 / 249 kN

Notes

• Specifications describe possible equipment. Weights refer to the basic configuration. Specifications and designs are subject to change without prior notice.

Technical specifications

• Model: 875-2
• Manufacturer: Komatsu
• Approx. weight (8WD): 20 590 kg
• Gross load: 16 000 / 17 000 kg
• Bunk area: 4.6 - 6.4 m²
• Engine: AGCO Power 75FSTN-D5, 6-cyl diesel, turbo & intercooler
• Displacement: 7.5 l
• Power: 214 kW @ 1850 rpm (EU Stage V / Tier 4F)
• Torque: 1 280 Nm @ 1 500 rpm
• Fuel tank: 210 l
• Crane options: Komatsu 130F / 145F / 165F (reach up to 10 m)
• Max hydraulic flow: 370 l/min at 1 950 rpm
• Electrical: 24 V, 2 x 185 Ah, 200 A generator
• Driving speed: up to approx. 25 km/h
• Tractive effort: 223 / 249 kN
