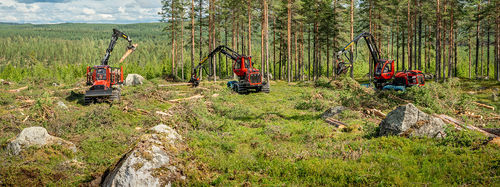

Forestry forwarder 895-4

Product overview
Designed for high productivity, every component of the 895 is developed for a 20-tonne load capacity. A powerful transmission combined with the 205F crane option makes this a truly productive forwarder for final felling. Customise your load space with Load Flex or hydraulic stakes. 165F crane in 7.5 / 8.5 / 10 m reach with the possibility to choose the stronger 205F crane as an option. Choose between options like XT transmission, 6WD and extra long rear frame for 7.2 m long timber.

Highlights

• Weight: 6WD: 22 300 kg, 8WD: 25 270 kg (6WD: 49,163 lb, 8WD: 55,710 lb)
• Gross load: 20 000 kg (44,092 lb)
• Power: 250 kW @ 1 850 rpm (EU Stage V, Tier 4F, MAR-1)
• Max tractive effort: 275 kN / 324 kN (61,823 / 72,838 lbf)

Specifications
Dimensions
A. Width: With 780/50x28,5 tyres: 3 160 mm (10'4")
B. Length, total: 11 020 mm (36'2") (with shortest rear frame)
C. Length, front axle to middle joint: 2 150 mm (7')
D. Length, middle joint to rear axle: 3 900 mm (12'10") (with shortest rear frame)
E. Transport height with hoses and tyre compression: 165F: 4 000 mm (13'2"), 205F: 3 990 mm (13'1")
F. Ground clearance, at steering joint: 8WD: 790 mm (2'7")
Note: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Weight
Approximate weight: 6WD: 22 300 kg (49,163 lb), 8WD: 25 270 kg (55,710 lb)

Engine
Type: AGCO Power, 75FSTN-D5, 6-cylinder diesel engine with turbo and intercooler
Stroke volume: 7.5 l (1.98 gal)
Power: 250 kW @ 1 850 rpm (EU Stage V, Tier 4F, MAR-1)
Torque: 1 450 Nm @ 1 500 rpm
Fuel tank: 245 l (64.7 gal)

Bunk area
Gross load: 20 000 kg (44,092 lb)
Bunk area: 6.1-7.4 m² (62 - 79.6 sq.ft)

Crane and grapple
Crane: Komatsu 165F / 205F
Reach: 7.5 m (24'7") / 8.5 m (27'11") / 10 m (32'10")
Gross lifting torque: 165 / 205 kNm (121,698 / 151,200 lb-ft)
Gross slewing torque: 43.4 / 51.9 kNm (32,010 / 38,280 lb-ft)
Rotator: G121 / GT151 / GT181 / GX
Grapple: Wide selection of grapples available.

Hydraulic system
Max hydraulic flow: 410 l/min (108 gal/min) @ 1950 rpm

Electrical system
Voltage: 24 V
Battery capacity: 2 x 185 Ah
Generator: 200 A

Transmission
Driving speed: 0 - approx. 25 km/h (0 - 15.5 mph)
Tractive force: 275 kN / 324 kN (61,823 / 72,838 lbf)

Notes
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

Technical specifications

• Model: 895-4
• Brand: Komatsu
• Gross load: 20 000 kg
• Approx. weight (6WD): 22 300 kg
• Approx. weight (8WD): 25 270 kg
• Engine type: AGCO Power 75FSTN-D5, 6-cylinder turbo diesel
• Engine power: 250 kW @ 1 850 rpm
• Torque: 1 450 Nm @ 1 500 rpm
• Fuel tank capacity: 245 l
• Crane options: Komatsu 165F / 205F (reach 7.5 / 8.5 / 10 m)
• Max hydraulic flow: 410 l/min @ 1950 rpm
• Voltage: 24 V; Battery: 2 x 185 Ah; Generator: 200 A
• Driving speed: 0 - approx. 25 km/h
