Forestry forwarder 898-0

Brief

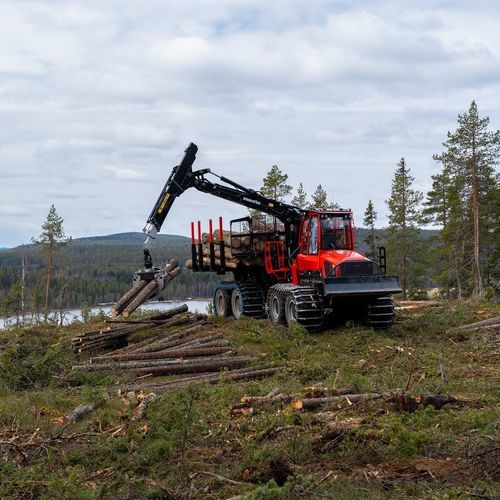

A 25-tonne forwarder designed for plantation forestry and final felling operations. The machine combines a powerful 250 kW engine, a robust transmission and a large, configurable load space to deliver cost-efficient productivity in the 25-tonne segment.

Highlights

• Gross load: 25 000 kg
• Power: 250 kW at 1 850 rpm
• Torque: 1 450 Nm at 1 500 rpm
• Tractive force: 8WD: 345 kN; 6WD: 262 kN

A machine for you

• 25-tonne load capacity
• Powerful 250 kW engine
• Crane options: 165F crane with 7.5 / 8.5 / 10 m reach; optional stronger 205F crane
• 8WD with dual hydrostatic motors (XT transmission option)
• Customisable load space with telescopic bunks (with or without optional hydraulic stakes)
• Wheel options: 8WD: front 28.5", rear 30.5"; 6WD: front 34", rear 30.5"
• Articulated, low bunks option for plantation forestry
• Optional extra-long rear frame for 7.2 m timber
• Multiple grapple models available

Strength and stability
Engineered for high productivity in demanding terrain. Stable design and high ground clearance enable reliable navigation of rough ground. The 898 8WD features a next-generation hydrostatic transmission with a larger pump and dual hydraulic motors to deliver high tractive force (up to 345 kN).

Robust load space
The load space includes a durable gate with adjustable height, telescopic bunks with width extension, hydraulically raiseable gate, foldable gate wideners lockable in folded or unfolded position, and optional hydraulic stakes to improve crane efficiency and reduce fuel consumption.

Crane and grapple
The 205F crane option is the strongest configuration for increased productivity in final cutting and plantation work. Compatible with large grapple models (e.g. G88H) and specialised grapples for bioenergy or heavy-duty handling.

Options

• Komatsu Comfort Ride (cab/ride damping and comfort features)
• Smart Crane (simplified crane operation, reduced operator strain, higher productivity)
• Smart Forestry (digital services for fleet management and productivity)

Technical specifications

• Model series: 898-0
• Gross load: 25 000 kg
• Bunk area: 6.9 - 8.6 m2
• Approximate weight: 6WD: 23 010 kg; 8WD: 25 980 kg
• Engine type: 6-cylinder diesel with turbo and intercooler (EU Stage V, Tier 4F and MAR-1)
• Stroke volume: 7.5 l
• Power: Stage V / Tier 4F / MAR-1: 250 kW
• Torque: EU Stage V / Tier 4F / MAR-1: 1 450 Nm at 1 500 rpm
• Fuel tank: 245 / 505 l
• Crane: Komatsu 165F or 205F
• Reach: 7.5 / 8.5 / 10 m
• Gross lifting torque: 165 / 205 kNm
• Gross slewing torque: 43.4 / 51.9 kNm
• Rotator options: GT151 / GX / GT181 (10 m)
• Max hydraulic flow: 410 l/min at 1 950 rpm
• Max working pressure: 28 MPa
• Electrical system voltage: 24 V
• Battery capacity: 2 x 180 Ah
• Generator: 2 x 100 A
• Driving speed: 0 - approx. 25 km/h
• Tractive force: 8WD: 345 kN; 6WD: 262 kN
• Dimensions (selected):
  A. Width (with 780/55x30.5" tyres): 3160 mm
  B. Length, total (with shortest rear frame): 11 000 mm
  C. Length, front axle to middle joint: 2 150 mm
  D. Length, middle joint to rear axle: 3 900 mm
  E. Transport height with hoses and tyre compression: 4 030 mm
  F. Ground clearance, at steering joint: 790 mm
• Notes: Specifications describe possible equipment, not what is standard or optional. Standard and optional equipment varies between countries. Weights based on equipment in basic specification. Specifications and designs subject to alteration without prior notice.
