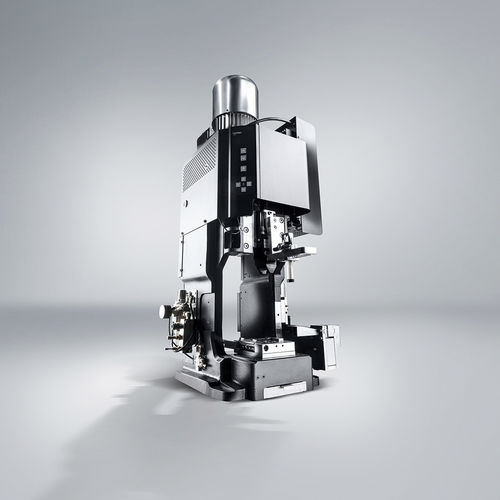

Crimping module C1380

The crimp module C1380 is currently used in the fully automatic wire processing machine Alpha 560 and offers a wide processing spectrum for conductor cross sections of 2.5 – 16 mm². With its exceptional flexibility and high crimp force of max. 50 kN, the C1380 is extremely versatile. With its high crimp force, however, this module is primarily used for heavy-duty applications, i.e. for solid grounding wires, battery wires and similarly thick wires. • Conductor cross sections of 2.5 – 16 mm² (AWG 14 – 6) • Crimp force max. 50 kN • Standard fully integrated CFA+/CFA crimp force monitoring for perfect results and minimal rejects. • Setup directly on the module via the wire button and with creep speed function • Proven technology from the modules C1340/1370 • Optional terminal strip chopper cuts terminal strips up to 1.2 mm thickness The crimp module C1380 is currently used in the fully automatic wire processing machine Alpha 560 and offers a wide processing spectrum for conductor cross sections of 2.5 – 16 mm². With its exceptional flexibility and high crimp force of max. 50 kN, the C1380 is extremely versatile. With its high crimp force, however, this module is primarily used for heavy-duty applications, i.e. for solid grounding wires, battery wires and similarly thick wires.
