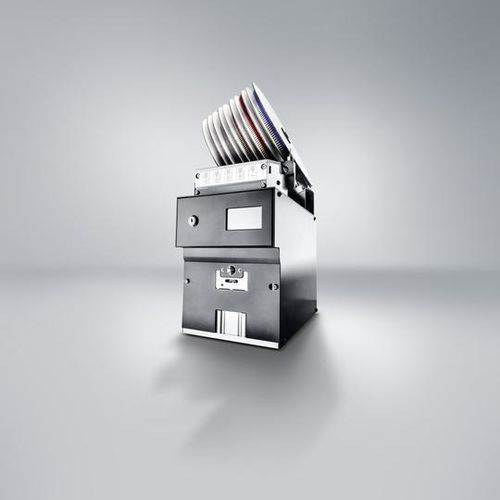

Crimping module CM F20

With the ferrule module CM F20, up to five different ferrules on strap can be processed sequentially with a trapezoidal crimp design. - Two-step entry and automatic wire centering: In order to avoid sources of error, the ferrule module CM F20 operates with a reliable, two-stage entry and offers automated wire centering. - High process reliability for ferrules on strap: The CM F20 module offers a reliable and economical solution for the automated processing of ferrules on strap on stripped wires. - Flexibility with freely programmable batch sizes: The ferrule module CM F20 can be seamlessly integrated into the Zeta automatic crimping machines. The batch sizes are freely programmed on the touch display of the Zeta machine. Technical data: - Wire cross section min.: 0.5 mm² - Wire cross section max.: 2.5 mm² - Operating pressure min.: 5 bar - Operating pressure max.: 6 bar - Weight: 19 kg - Dimensions without rollers / width: 205 mm
