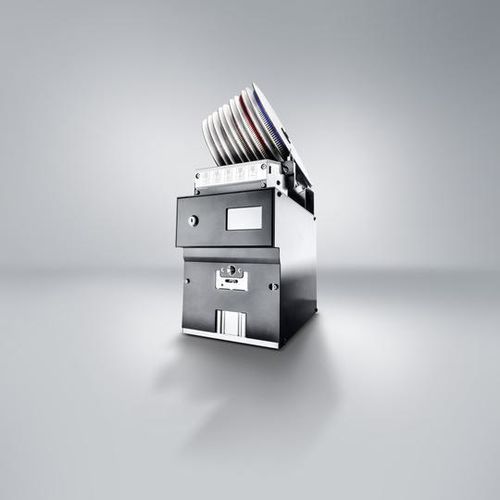

Ferrule CM F20

The CM F20 ferrule module allows sequential processing of up to five different ferrules with a trapezoidal crimp design. - Two-step entry and automatic wire centering: To avoid sources of error, the CM F20 operates with a reliable, two-stage entry and offers automated wire centering. - High process reliability for ferrules on strap: The CM F20 module offers a reliable and economical solution for the automated processing of ferrules on strap on stripped wires. - Flexibility with freely programmable batch sizes: The CM F20 can be seamlessly integrated into the Zeta automatic crimping machines. The batch sizes are freely programmed on the touch display of the Zeta machine. Technical data: - Wire cross section min.: 0.5 mm² - Wire cross section max.: 2.5 mm² - Operating pressure min.: 5 bar - Operating pressure max.: 6 bar - Weight: 19 kg - Dimensions without rollers / width: 205 mm
