Double shaft shredder Crambo direct
for woodfor green waste

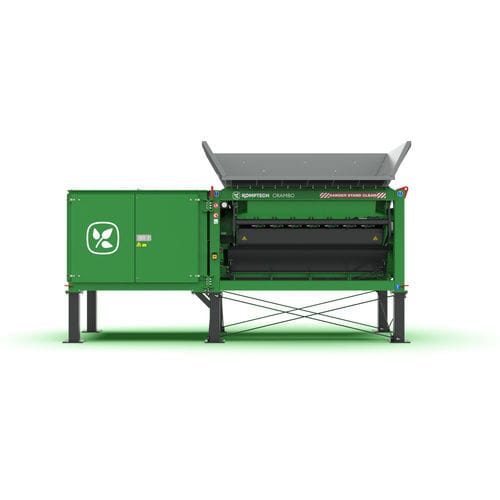

Double shaft shredder - Crambo direct  - Komptech - for wood / for green waste
Double shaft shredder - Crambo direct  - Komptech - for wood / for green waste
Double shaft shredder - Crambo direct  - Komptech - for wood / for green waste - image - 2
Double shaft shredder - Crambo direct  - Komptech - for wood / for green waste - image - 3
Double shaft shredder - Crambo direct  - Komptech - for wood / for green waste - image - 4
Double shaft shredder - Crambo direct  - Komptech - for wood / for green waste - image - 5
Double shaft shredder - Crambo direct  - Komptech - for wood / for green waste - image - 6
Add to favorites
Compare this product

Characteristics

Number of shafts
double shaft
Application
for wood, for green waste
Power

160,000 W, 200,000 W, 280,000 W

Output

55 t/h, 80 t/h, 120 t/h
(33.68 lb/s, 48.99 lb/s, 73.49 lb/s)

Rotor diameter

610 mm
(24 in)

Rotational speed

29 rpm, 34 rpm, 44 rpm
(182 rad.min-1, 214 rad.min-1, 276 rad.min-1)

Operating weight

Min.: 16 t
(17.6 us ton)

Max.: 17.1 t
(18.8 us ton)

Description

The Crambo direct is one of the best machines there is for shredding all types of wood and green waste. In the stationary version, a low-maintenance electric motor provides the drive power. A mechanical drive train offers top economy, while retaining all product benefits like overloading protection, reversibility, adaptation to the material and more. Large doors offer perfect access to all drive components. Perfect for biogenic waste In the extra-large shredding chamber, two 2.8 m counterrotating toothed drums ensure positive feed. From bulky branches and cuttings to rootstocks of any size to used wood contaminated with contraries, it shreds everything down to a defined particle size. Particle size as desired The degree of shredding can be adjusted flexibly, either by changing the screen basket, or even more conveniently by changing the entire screen basket cartridge — and the machine is ready for a new job. Top drive efficiency The stationary Crambo direct has a mechanical drive with automatic load-dependent gear shifting. That means top economy while retaining all functional benefits like overloading protection, reversibility and two shredding speeds. Simple and logical control The operating panel uses symbols that are clearly understand- able without text. The menu guidance follows a logic any user can understand, and the screen shows all machine functions graphically. This virtually precludes operator error.
