Single shaft shredder Terminator e-mobile
solid & bulk wastecompactmobile

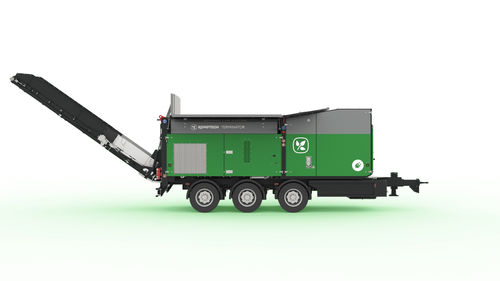

Single shaft shredder - Terminator e-mobile - Komptech - solid & bulk waste / compact / mobile
Single shaft shredder - Terminator e-mobile - Komptech - solid & bulk waste / compact / mobile
Single shaft shredder - Terminator e-mobile - Komptech - solid & bulk waste / compact / mobile - image - 2
Single shaft shredder - Terminator e-mobile - Komptech - solid & bulk waste / compact / mobile - image - 3
Single shaft shredder - Terminator e-mobile - Komptech - solid & bulk waste / compact / mobile - image - 4
Single shaft shredder - Terminator e-mobile - Komptech - solid & bulk waste / compact / mobile - image - 5
Single shaft shredder - Terminator e-mobile - Komptech - solid & bulk waste / compact / mobile - image - 6
Add to favorites
Compare this product

Characteristics

Number of shafts
single shaft
Application
solid & bulk waste
Other characteristics
compact, mobile, hydraulic drive, energy-efficient
Power

160,000 W, 200,000 W, 280,000 W

Output

Min.: 45 t/h
(27.56 lb/s)

Max.: 80 t/h
(48.99 lb/s)

Rotor diameter

1,050 mm
(41 in)

Operating weight

Min.: 21.1 t
(23.3 us ton)

Max.: 24.9 t
(27.4 us ton)

Machine height

2,396 mm
(94 in)

Description

The Terminator is one of the most successful single-shaft shredders for all types of waste. The new e-mobile series adds semi-mobile electric-powered versions to the line-up, featuring maintenance-free electric motors instead of diesel engines. The concept combines the compact design and flexibility of a mobile machine with the energy efficiency of a stationary machine Everything possible The Terminator is able to shred the most difficult materials. Everything is shred to the desired particles size. Applications with drum/opposing comb system variants range from coarse pre-crushing to defined shredding. High energie efficiency The electric motor instead of a diesel engine offers a significant advantage in energy costs with its high efficiency. With comparable throughput, 70 % of the energy costs can be saved compared to diesel. Coarse or fine The continuous cutting gap adjustment allows tailoring of the produced particle size to subsequent usage. Completely swivelling of the counter comb provides perfect accessibility for maintenance of the shredding area. Loading made easy Load material into the big hopper — the machine does the rest. Hydraulic folding hopper sidewalls make the already generous shredding chamber even bigger, for a loading volume of up to seven cubic metres.
